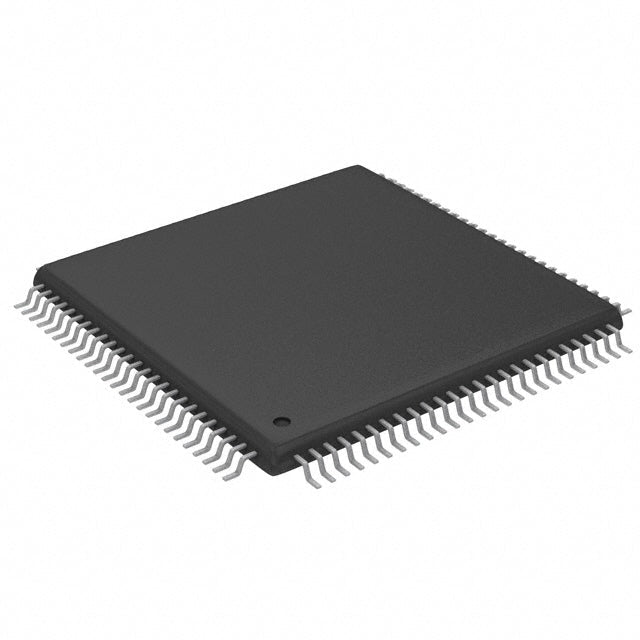

Analog Devices Inc./Maxim Integrated MAX32620ICQ+W
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | DARWIN |
| Packaging | | Tube |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 96MHz |
| Connectivity | 1-Wire, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 49 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.6V |
| Data Converters | A/D 4x10b Sigma-Delta |
| Oscillator Type | Internal |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Package / Case | 100-TQFP Exposed Pad |
| ROHS |  |
The MAX32620ICQ+W from Analog Devices is a high-performance ARM Cortex-M4F microcontroller with FPU, running at 96MHz. It features 2MB flash and 256KB SRAM, ideal for complex applications. The 100-TQFP package with exposed pad supports efficient heat dissipation. Operating from 1.14V to 3.6V, it suits battery-powered and energy-harvesting designs. Integrated brown-out detection, POR, PWM, and WDT ensure robust operation from -30°C to 85°C.
- High memory capacity (2MB flash/256KB SRAM): Supports complex firmware and large data buffers without external memory.
- FPU for math-intensive tasks: Accelerates DSP and ML algorithms, reducing CPU load.
- Ultra-low voltage (1.14V): Enables direct battery or energy harvesting operation.
- Exposed pad package: Improves thermal performance for high-clock applications.
Wearable Health Monitors
The Cortex-M4F with FPU accelerates signal processing for ECG/PPG algorithms. The 2MB flash stores firmware and patient data, while 256KB SRAM handles real-time sensor streams.
IoT Edge Nodes
With 96MHz performance and 1.14V operation, this MCU runs ML inference for anomaly detection. The 100-TQFP package offers many GPIOs for sensor interfaces.
Portable Medical Devices
High memory capacity supports complex algorithms for glucose meters or infusion pumps. The exposed pad aids thermal dissipation in compact enclosures.
Smart Industrial Sensors
Process vibration or temperature data locally with DSP capabilities. The wide voltage range (1.14V-3.6V) allows direct connection to energy harvesting sources.
Audio Processing
The FPU and 96MHz clock handle real-time audio filtering for hearing aids or voice-controlled devices. 2MB flash stores audio samples.
Robotics Controllers
Use for motor control and sensor fusion. The Cortex-M4F's SIMD instructions speed up matrix operations for kinematics.
- Q: What core does the MAX32620ICQ+W use?
- A: It uses an ARM Cortex-M4F with FPU, running at 96MHz.
- Q: How much flash and RAM does it have?
- A: It has 2MB flash and 256KB SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.14V to 3.6V.
- Q: What package is available?
- A: It comes in a 100-TQFP with exposed pad.
- Q: What is the temperature range?
- A: It is rated for -30°C to 85°C.
