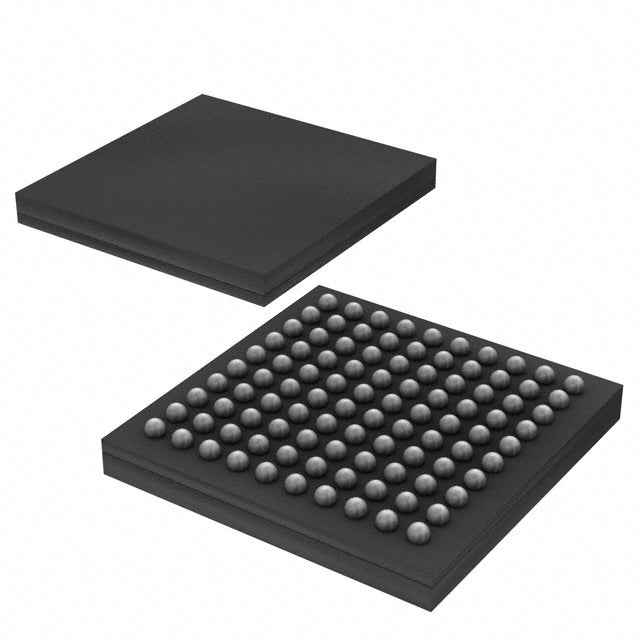

Analog Devices Inc./Maxim Integrated MAX32630IWG+W
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | DARWIN |
| Packaging | | Tube |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 96MHz |
| Connectivity | 1-Wire, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.6V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-WLP (4.4x4.4) |
| Package / Case | 100-WFBGA, WLBGA |
| ROHS |  |
The MAX32630IWG+W from Analog Devices is a high-performance ARM Cortex-M4F microcontroller with FPU, running at 96MHz. It offers 2MB flash and 512KB SRAM, making it suitable for data-intensive applications. The 100-WFBGA/WLBGA package is ideal for space-constrained designs. Operating from 1.14V to 3.6V, it supports low-power and battery-operated devices. Integrated brown-out detection, POR, PWM, and WDT ensure reliable operation from -20°C to 85°C.
- Large SRAM (512KB): Enables complex real-time data processing and buffering.
- Ultra-compact WLBGA package: Reduces PCB area for miniaturized products.
- FPU and 96MHz: Handles DSP and ML workloads efficiently.
- Low voltage (1.14V): Extends battery life in portable devices.
Advanced Wearables
The 512KB SRAM enables complex sensor fusion and on-device AI for smartwatches. The WLBGA package saves board space for compact designs.
Medical Implants
With 2MB flash, store extensive patient logs. The 1.14V operation allows single-cell battery use, while the Cortex-M4F handles real-time biosignal processing.
Edge AI Devices
Run TensorFlow Lite Micro models for voice or gesture recognition. The FPU and 96MHz clock provide sufficient compute for inference.
High-End IoT Gateways
Aggregate data from multiple sensors and run protocol stacks (BLE, Zigbee). The large SRAM buffers packets efficiently.
Portable Instrumentation
Use in oscilloscopes or multimeters. The 512KB SRAM supports high-resolution waveform capture, and the WLBGA package fits in handheld enclosures.
Robotics and Drones
Process IMU data and control loops at high speed. The 2MB flash stores complex flight algorithms, while the small package reduces weight.
- Q: What is the core of the MAX32630IWG+W?
- A: It uses an ARM Cortex-M4F with FPU at 96MHz.
- Q: How much flash and RAM does it have?
- A: It has 2MB flash and 512KB SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.14V to 3.6V.
- Q: What package is available?
- A: It comes in a 100-WFBGA/WLBGA package.
- Q: What is the temperature range?
- A: It is rated for -20°C to 85°C.
