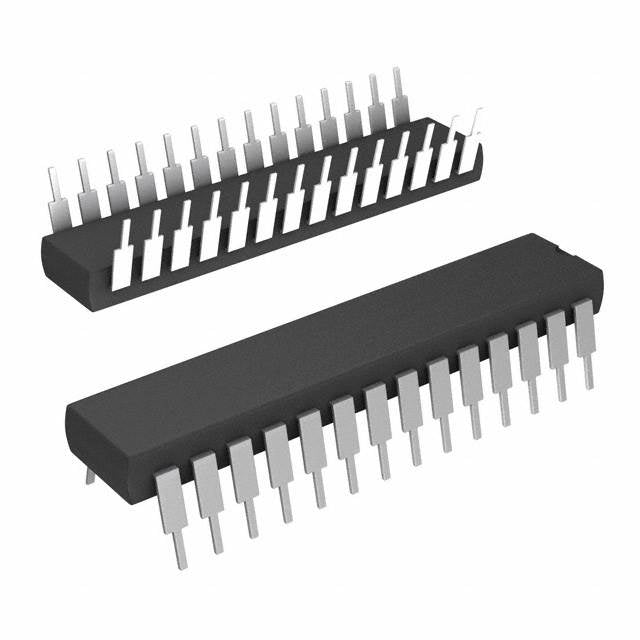

Analog Devices Inc./Maxim Integrated MAX336CPI
Regular price
$19.33
Regular price
$4.83
Sale price
$19.33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.33 | $19.33 |
| 15+ | $4.44 | $66.60 |
| 25+ | $4.35 | $108.75 |
| 50+ | $4.11 | $205.50 |
| 100+ | $3.62 | $362.00 |
| N+ | $0.72 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | 3.5pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Crosstalk | -86dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP (0.600", 15.24mm) |
| ROHS |  |
MAX336CPI.pdf
×
