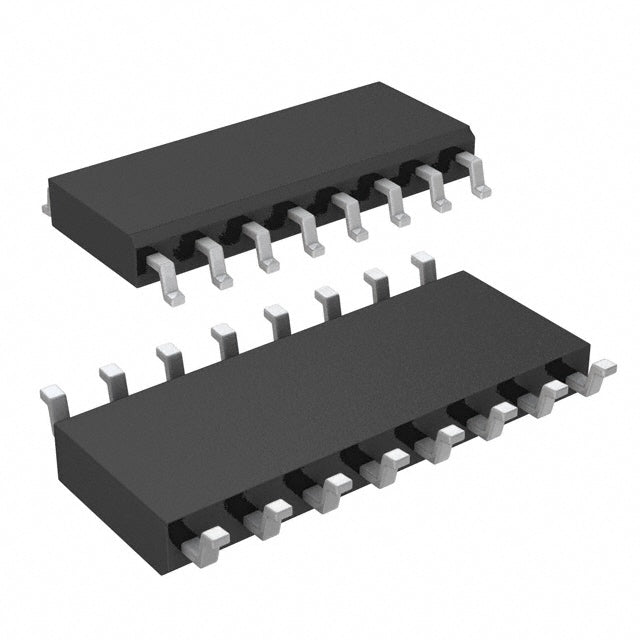

Analog Devices Inc./Maxim Integrated MAX339MSE/PR3+
Regular price
$13.54
Regular price
$14.25
Sale price
$13.54
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.54 | $13.54 |
| 15+ | $13.11 | $196.65 |
| 25+ | $12.83 | $320.75 |
| 50+ | $12.11 | $605.50 |
| 100+ | $10.69 | $1,069.00 |
| N+ | $2.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SP4T - NO/NC |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | 1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 6pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Crosstalk | -92dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MAX339MSE/PR3+.pdf
×
