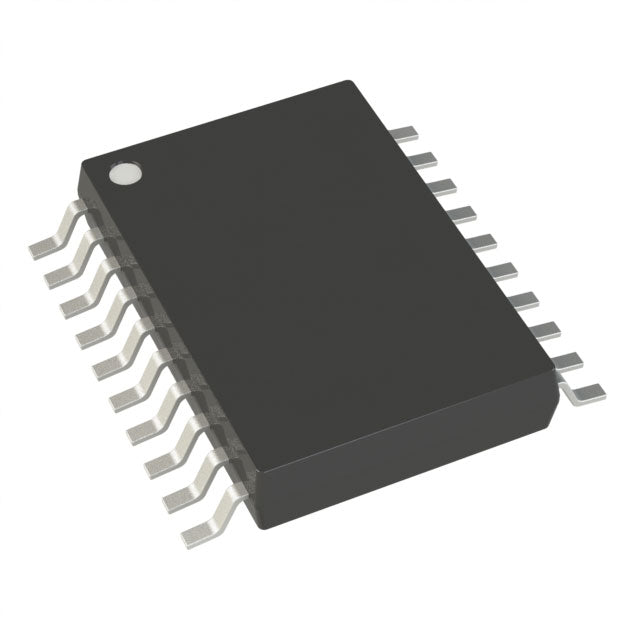

Analog Devices Inc./Maxim Integrated MAX394EUP+
Regular price
$17.18
Regular price
$18.08
Sale price
$17.18
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.18 | $17.18 |
| 15+ | $16.63 | $249.45 |
| 25+ | $16.27 | $406.75 |
| 50+ | $15.37 | $768.50 |
| 100+ | $13.56 | $1,356.00 |
| N+ | $2.71 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 15V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -88dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
MAX394EUP+.pdf
×
