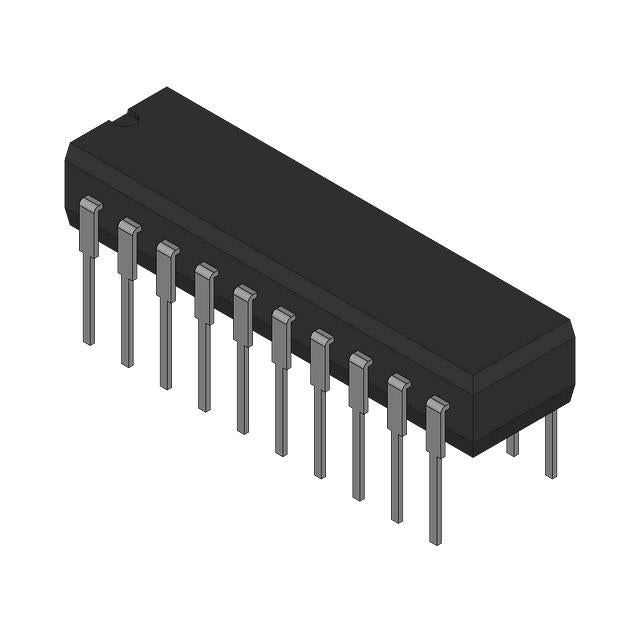

Analog Devices Inc./Maxim Integrated MAX394MJP
Regular price
$97.40
Regular price
$24.35
Sale price
$97.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $97.40 | $97.40 |
| 15+ | $22.40 | $336.00 |
| 25+ | $21.92 | $548.00 |
| 50+ | $20.70 | $1,035.00 |
| 100+ | $18.26 | $1,826.00 |
| N+ | $3.65 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SPDT - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 30Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 15V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -88dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP (0.300", 7.62mm) |
MAX394MJP.pdf
×
