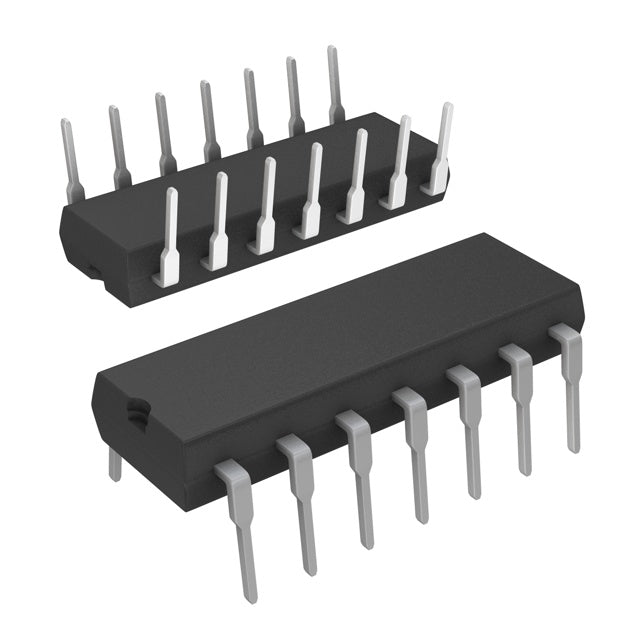

Analog Devices Inc./Maxim Integrated MAX4066AEPD
Regular price
$9.41
Regular price
$2.35
Sale price
$9.41
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.41 | $9.41 |
| 15+ | $2.16 | $32.40 |
| 25+ | $2.12 | $53.00 |
| 50+ | $2.00 | $100.00 |
| 100+ | $1.76 | $176.00 |
| N+ | $0.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 16V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -86dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
MAX4066AEPD.pdf
×
