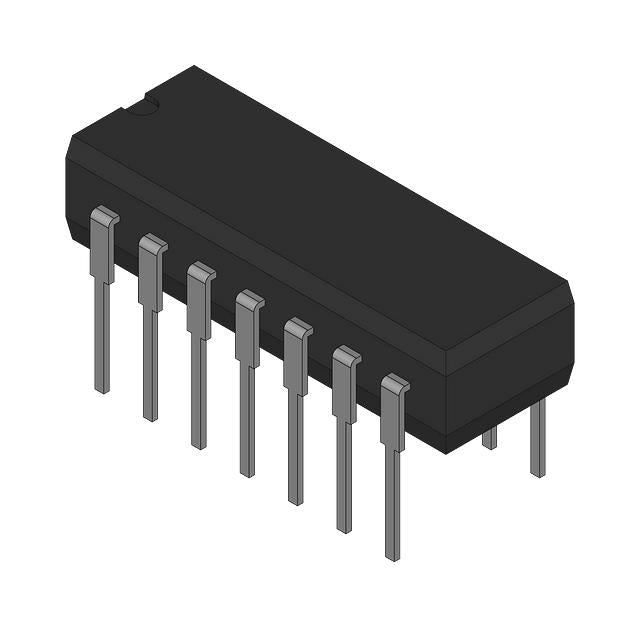

Analog Devices Inc./Maxim Integrated MAX4066AMJD
Regular price
$20.68
Regular price
$5.17
Sale price
$20.68
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.68 | $20.68 |
| 15+ | $4.76 | $71.40 |
| 25+ | $4.65 | $116.25 |
| 50+ | $4.39 | $219.50 |
| 100+ | $3.88 | $388.00 |
| N+ | $0.78 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 16V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -86dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
MAX4066AMJD.pdf
×
