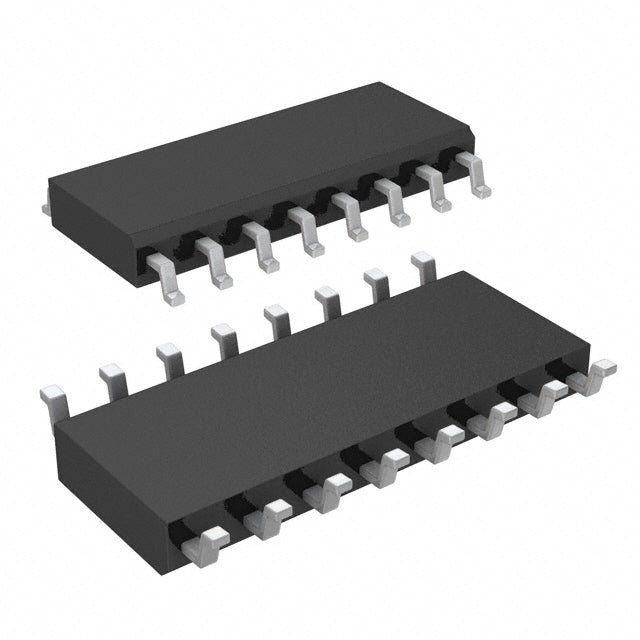

Analog Devices Inc./Maxim Integrated MAX4509CSE+
Regular price
Dhs. 55.19
Regular price
Dhs. 58.11
Sale price
Dhs. 55.19
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 55.19 | Dhs. 55.19 |
| 15+ | Dhs. 53.46 | Dhs. 801.90 |
| 25+ | Dhs. 52.30 | Dhs. 1,307.50 |
| 50+ | Dhs. 49.39 | Dhs. 2,469.50 |
| 100+ | Dhs. 43.58 | Dhs. 4,358.00 |
| N+ | Dhs. 8.72 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -62dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MAX4509CSE+.pdf
×
