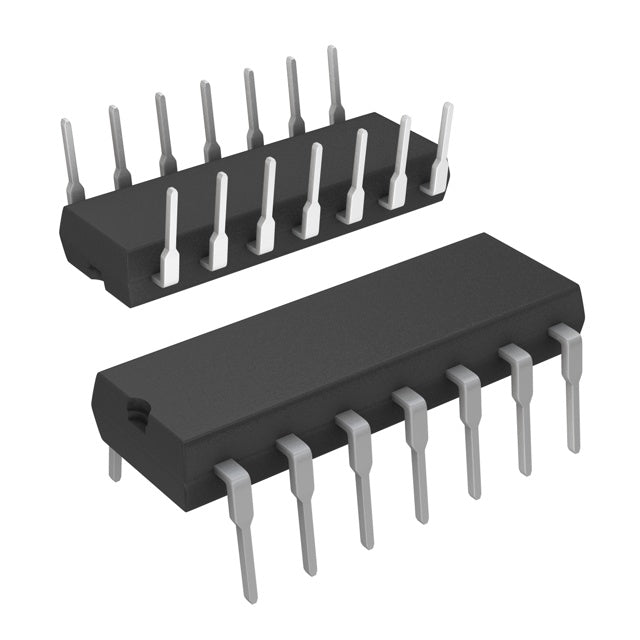

Analog Devices Inc./Maxim Integrated MAX4525CPD
Regular price
$5.29
Regular price
$1.32
Sale price
$5.29
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.29 | $5.29 |
| 15+ | $1.21 | $18.15 |
| 25+ | $1.19 | $29.75 |
| 50+ | $1.12 | $56.00 |
| 100+ | $0.99 | $99.00 |
| N+ | $0.20 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | 0.8pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 6pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -74dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
| ROHS |  |
MAX4525CPD.pdf
×
