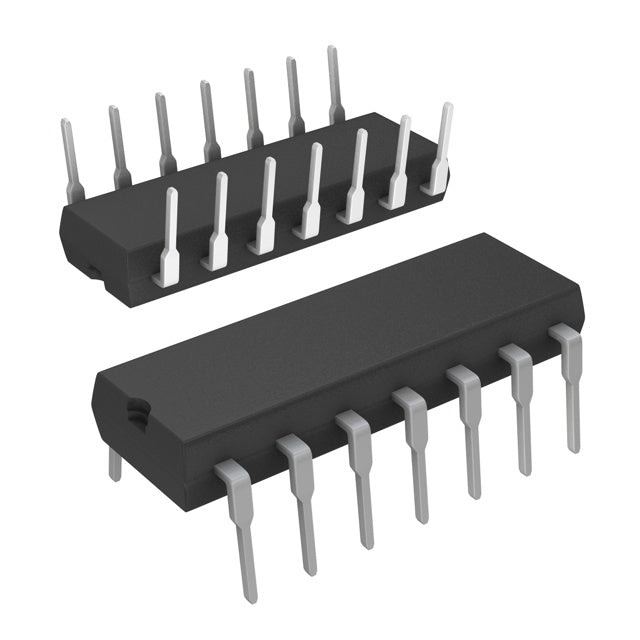

Analog Devices Inc./Maxim Integrated MAX4534EPD
Regular price
$13.88
Regular price
$3.47
Sale price
$13.88
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.88 | $13.88 |
| 15+ | $3.19 | $47.85 |
| 25+ | $3.12 | $78.00 |
| 50+ | $2.95 | $147.50 |
| 100+ | $2.60 | $260.00 |
| N+ | $0.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 6.5pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -53dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
MAX4534EPD.pdf
×
