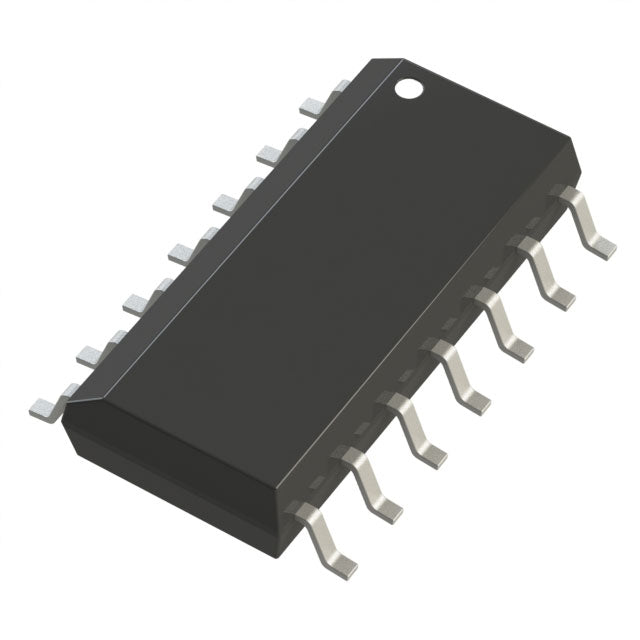

Analog Devices Inc./Maxim Integrated MAX4534ESD+T
Regular price
Dhs. 14.95
Regular price
Dhs. 15.74
Sale price
Dhs. 14.95
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 14.95 | Dhs. 14.95 |
| 15+ | Dhs. 14.48 | Dhs. 217.20 |
| 25+ | Dhs. 14.17 | Dhs. 354.25 |
| 50+ | Dhs. 13.38 | Dhs. 669.00 |
| 100+ | Dhs. 11.81 | Dhs. 1,181.00 |
| N+ | Dhs. 2.36 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 6.5pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -53dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MAX4534ESD+T.pdf
×
