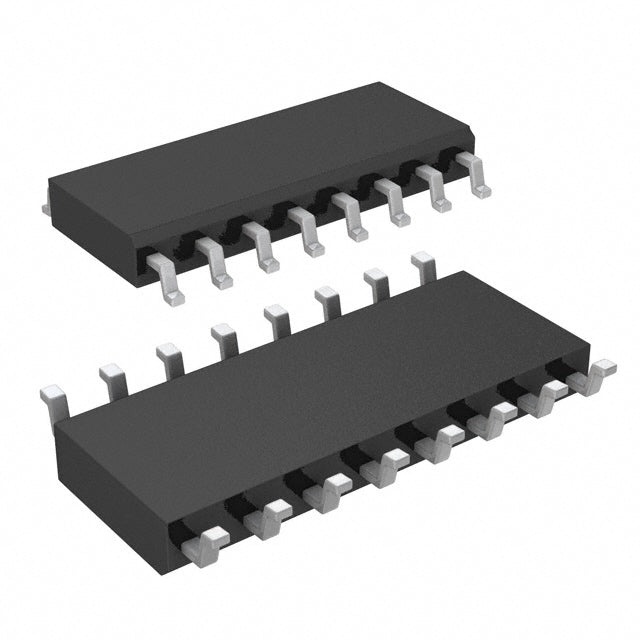

Analog Devices Inc./Maxim Integrated MAX4560ESE
Regular price
$10.43
Regular price
$2.61
Sale price
$10.43
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.43 | $10.43 |
| 15+ | $2.40 | $36.00 |
| 25+ | $2.35 | $58.75 |
| 50+ | $2.22 | $111.00 |
| 100+ | $1.96 | $196.00 |
| N+ | $0.39 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | 2.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MAX4560ESE.pdf
×
