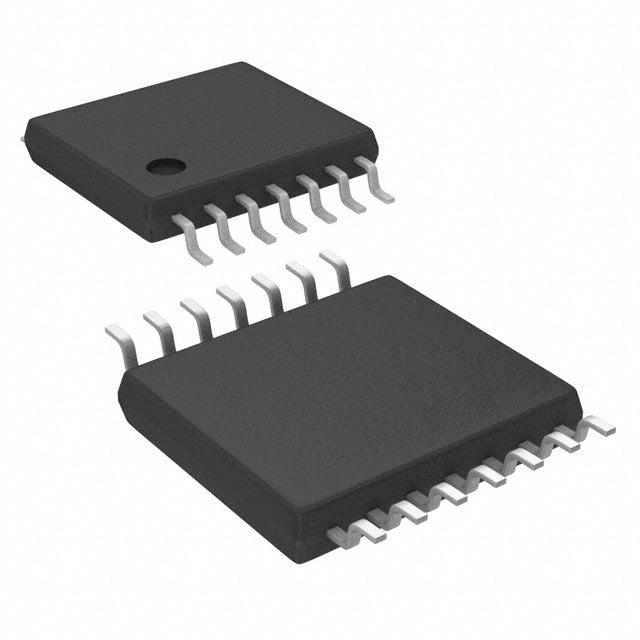

Analog Devices Inc./Maxim Integrated MAX4747EUD+T
Regular price
$6.37
Regular price
$6.70
Sale price
$6.37
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.37 | $6.37 |
| 15+ | $6.16 | $92.40 |
| 25+ | $6.03 | $150.75 |
| 50+ | $5.70 | $285.00 |
| 100+ | $5.03 | $503.00 |
| N+ | $1.01 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 11V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 85ns, 45ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -84dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
MAX4747EUD+T.pdf
×
