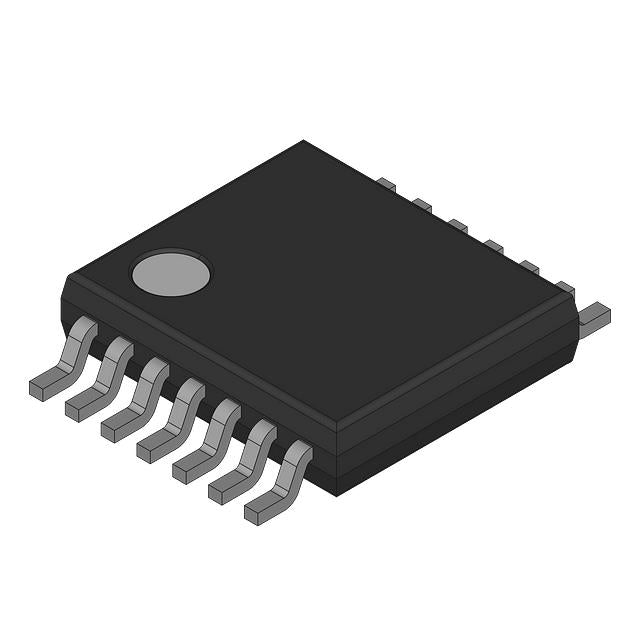

Analog Devices Inc./Maxim Integrated MAX4749EUD
Regular price
$5.08
Regular price
$1.27
Sale price
$5.08
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.08 | $5.08 |
| 15+ | $1.17 | $17.55 |
| 25+ | $1.14 | $28.50 |
| 50+ | $1.08 | $54.00 |
| 100+ | $0.95 | $95.00 |
| N+ | $0.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 11V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 85ns, 45ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -84dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
MAX4749EUD.pdf
×
