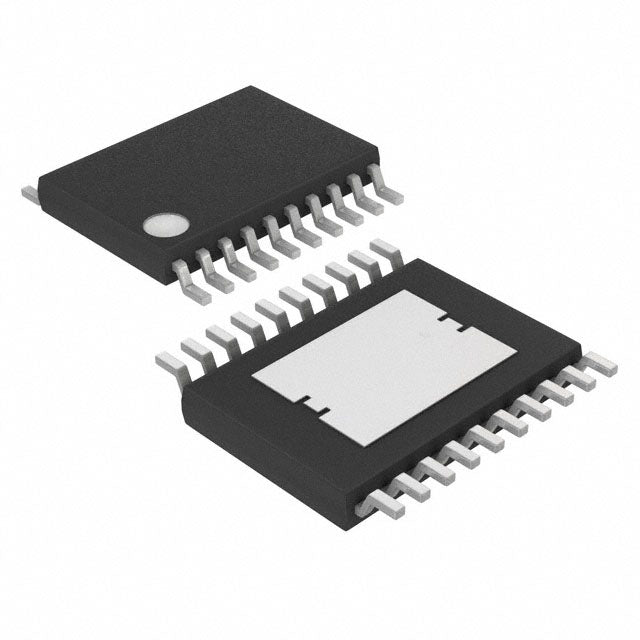

Analog Devices Inc./Maxim Integrated MAX4820EUP+
Regular price
$7.85
Regular price
$8.26
Sale price
$7.85
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.85 | $7.85 |
| 15+ | $7.60 | $114.00 |
| 25+ | $7.43 | $185.75 |
| 50+ | $7.02 | $351.00 |
| 100+ | $6.20 | $620.00 |
| N+ | $1.24 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 70mA |
| Rds On (Typ) | 2Ohm |
| nput Type | - |
| Features | - |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| ROHS |  |
MAX4820EUP+.pdf
×
