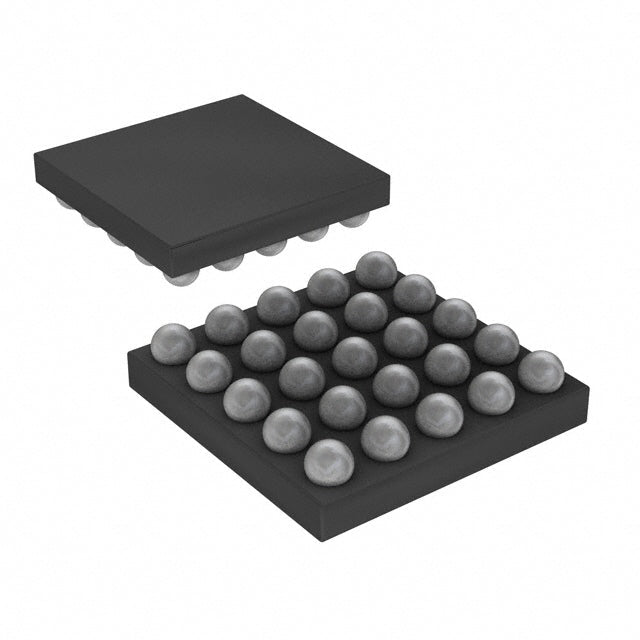

Analog Devices Inc./Maxim Integrated MAX4947EBA+T
Regular price
$10.66
Regular price
$2.66
Sale price
$10.66
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.66 | $10.66 |
| 15+ | $2.45 | $36.75 |
| 25+ | $2.39 | $59.75 |
| 50+ | $2.26 | $113.00 |
| 100+ | $2.00 | $200.00 |
| N+ | $0.40 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 800ns, 800ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 25-WFBGA, CSPBGA |
| Supplier Device Package | 25-WFBGA, CSPBGA |
| ROHS |  |
MAX4947EBA+T.pdf
×
