Analog Devices Inc./Maxim Integrated MAX5974AETE+TG3U
Regular price
Dhs. 2.92
Regular price
Dhs. 3.07
Sale price
Dhs. 2.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.92 | Dhs. 2.92 |
| 15+ | Dhs. 2.82 | Dhs. 42.30 |
| 25+ | Dhs. 2.76 | Dhs. 69.00 |
| 50+ | Dhs. 2.61 | Dhs. 130.50 |
| 100+ | Dhs. 2.30 | Dhs. 230.00 |
| N+ | Dhs. 0.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
MAX5974AETE+TG3U - High-Performance Isolated Forward Converter IC
The MAX5974AETE+TG3U from Analog Devices Inc./Maxim Integrated is a precision isolated forward converter controller designed for high-reliability power management applications. This advanced IC delivers exceptional performance across aerospace, automotive, industrial, medical, and telecommunications systems requiring long lifecycle support and full traceability.
Key Features & Benefits
- Wide Input Voltage Range: 7V to 26V supply voltage with 16V start-up capability
- Flexible Switching Frequency: 100kHz to 600kHz for optimized efficiency and EMI performance
- Comprehensive Protection: Current limiting, over-temperature, and short-circuit fault protection
- Advanced Control Features: Enable, frequency control, soft start, and synchronization capabilities
- High Duty Cycle: Up to 80% for maximum power delivery

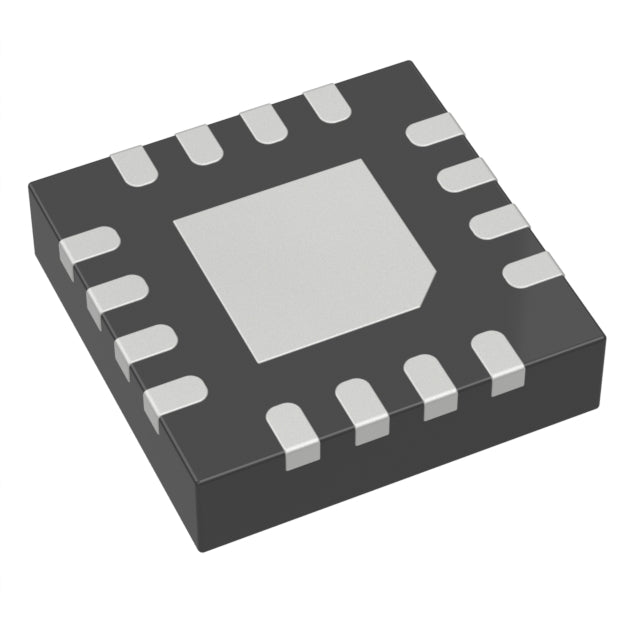

- Compact Surface Mount Package: 16-TQFN (3x3mm) with exposed pad for superior thermal performance
- Extended Operating Temperature: -40°C to +85°C (TA) for demanding environments
- RoHS Compliant: Meets environmental standards for global deployment
Applications
Ideal for isolated DC-DC converters, PoE systems, industrial automation, telecom infrastructure, and distributed power architectures requiring precise regulation and robust protection.
Ordering Information: Available in Tape & Reel (TR) packaging for automated assembly. Full manufacturer traceability and documentation provided with every shipment.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Forward |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 26V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz ~ 600kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Control Features | EN, Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
| ROHS |  |
MAX5974AETE+TG3U.pdf
×
