Analog Devices Inc./Maxim Integrated MAX5974EETE+TG3U
Regular price
Dhs. 2.92
Regular price
Dhs. 3.07
Sale price
Dhs. 2.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.92 | Dhs. 2.92 |
| 15+ | Dhs. 2.82 | Dhs. 42.30 |
| 25+ | Dhs. 2.76 | Dhs. 69.00 |
| 50+ | Dhs. 2.61 | Dhs. 130.50 |
| 100+ | Dhs. 2.30 | Dhs. 230.00 |
| N+ | Dhs. 0.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

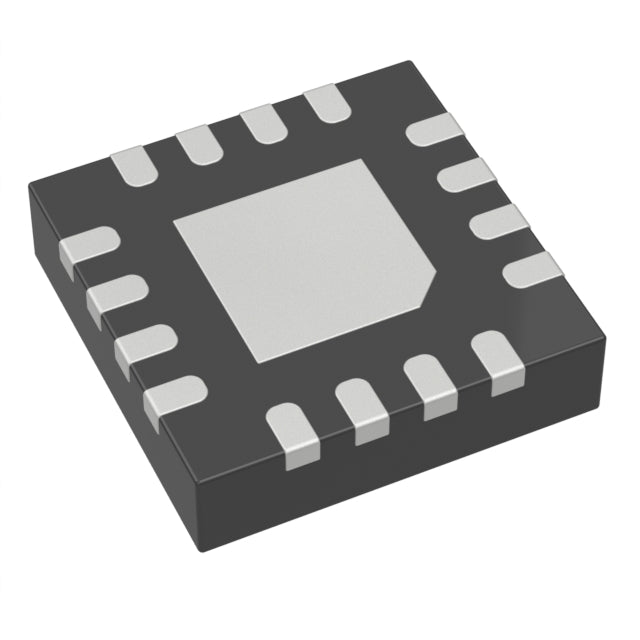

MAX5974EETE+TG3U - Flyback PWM Controller IC
The MAX5974EETE+TG3U from Analog Devices Inc./Maxim Integrated is a high-performance flyback PWM controller designed for offline power supply applications. This IC delivers reliable power conversion with integrated protection features including current limiting, over-temperature, and short-circuit protection.
Key Features:
- Wide input voltage range: 7V to 26V
- Adjustable switching frequency: 100kHz to 600kHz
- 80% maximum duty cycle for efficient power conversion
- Comprehensive fault protection (current limiting, thermal shutdown, short circuit)
- Advanced control features: Enable, frequency control, soft start, and sync
- Compact 16-TQFN (3x3mm) surface mount package
- Extended operating temperature: -40°C to +85°C
- RoHS compliant for environmental compliance
Applications: Ideal for industrial power supplies, telecom equipment, automotive systems, medical devices, and aerospace applications requiring long lifecycle components with full traceability.
All units ship with manufacturer documentation and comply with RoHS/REACH standards. Available in tape and reel packaging for automated assembly.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 26V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz ~ 600kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Control Features | EN, Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
| ROHS |  |
MAX5974EETE+TG3U.pdf
×
