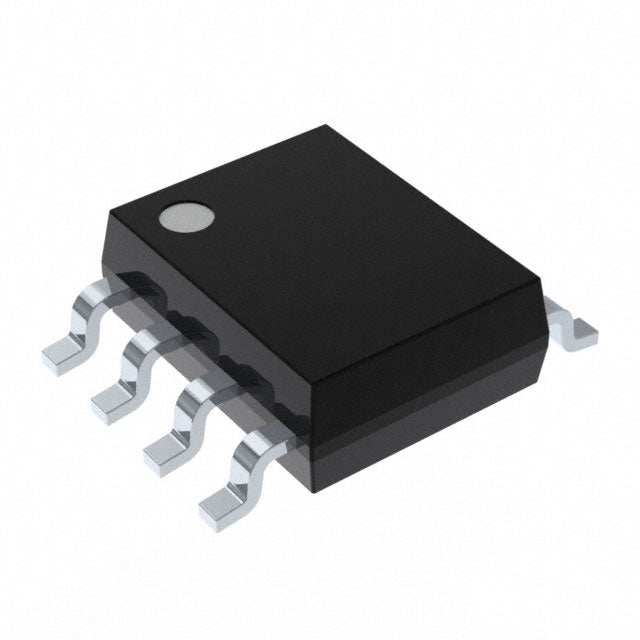

Analog Devices Inc./Maxim Integrated MAX603ESA+T
Regular price
$9.81
Regular price
$10.33
Sale price
$9.81
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.81 | $9.81 |
| 15+ | $9.50 | $142.50 |
| 25+ | $9.30 | $232.50 |
| 50+ | $8.78 | $439.00 |
| 100+ | $7.75 | $775.00 |
| N+ | $1.55 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 11.5V |
| Voltage - Output (Min/Fixed) | 1.25V (5V) |
| Voltage - Output (Max) | 11V |
| Voltage Dropout (Max) | 0.55V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
MAX603ESA+T.pdf
×
