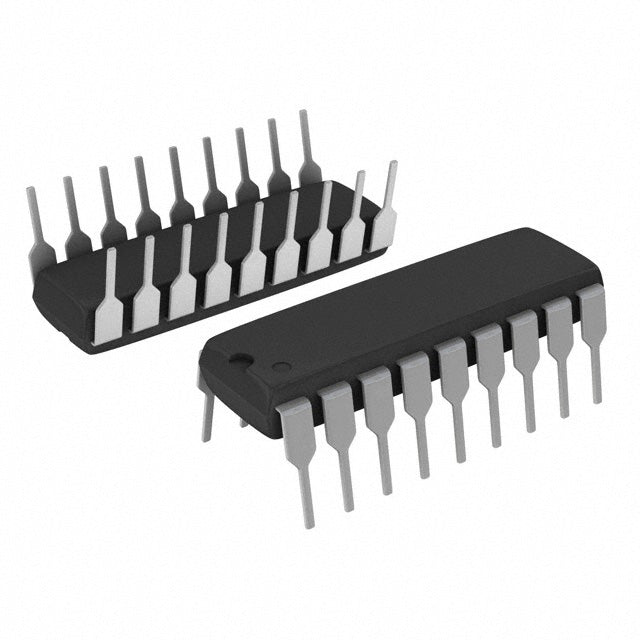

Analog Devices Inc./Maxim Integrated MAX620EPN
Regular price
$5.55
Regular price
$5.84
Sale price
$5.55
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.55 | $5.55 |
| 15+ | $5.37 | $80.55 |
| 25+ | $5.26 | $131.50 |
| 50+ | $4.96 | $248.00 |
| 100+ | $4.38 | $438.00 |
| N+ | $0.88 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Driven Configuration | High-Side |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 4.5V ~ 16.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | - |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 1.7µs, 2.5µs |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
MAX620EPN.pdf
×
