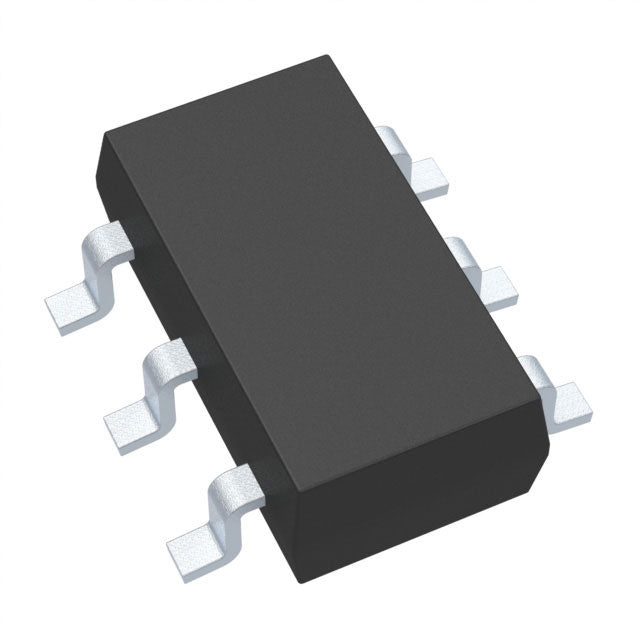

Analog Devices Inc./Maxim Integrated MAX6329SPUT+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.24 | $8.24 |
| 15+ | $1.90 | $28.50 |
| 25+ | $1.85 | $46.25 |
| 50+ | $1.75 | $87.50 |
| 100+ | $1.55 | $155.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.23V (3.3V) |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.36V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The MAX6329SPUT+T from Analog Devices is a low-dropout linear regulator offering a fixed 5V output at up to 150mA. With an ultra-low quiescent current of 50µA and a dropout voltage of 0.36V at full load, it is optimized for battery-powered and low-power applications. The compact SOT-23-6 package makes it easy to integrate into space-constrained designs.
- Ultra-Low Power: 50µA quiescent current significantly extends battery life in standby mode.
- Compact Size: SOT-23-6 package is ideal for miniaturized portable electronics.
- Low Dropout: 0.36V at 150mA allows efficient operation from 3.3V rails.
- Stable 5V Output: Fixed output ensures reliable performance for digital and analog circuits.
Battery-Powered Remote Controls
The 50µA quiescent current and 150mA output are perfect for IR/RF remote controls, ensuring long battery life.
Portable Instrumentation
Stable 5V output from a 3.3V rail with low dropout supports precision analog circuits in handheld meters.
Wearable Fitness Trackers
SOT-23-6 package and low power consumption make it ideal for compact, battery-operated wearables.
Low-Power Microcontrollers
Provides clean 5V supply for MCUs and sensors, with enough current for typical embedded loads.
Automotive Interior Electronics
Operates from 3.3V automotive rails, delivering 5V for infotainment peripherals and sensors.
Smart Home Sensors
Low quiescent current supports always-on motion and temperature sensors with minimal power draw.
- Q: What is the output voltage?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input range is 1.23V to 5V, with typical operation at 3.3V.
- Q: What is the dropout voltage?
- A: Dropout is 0.36V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is only 50µA, very low for battery applications.
- Q: What package is available?
- A: It comes in a small SOT-23-6 package.
