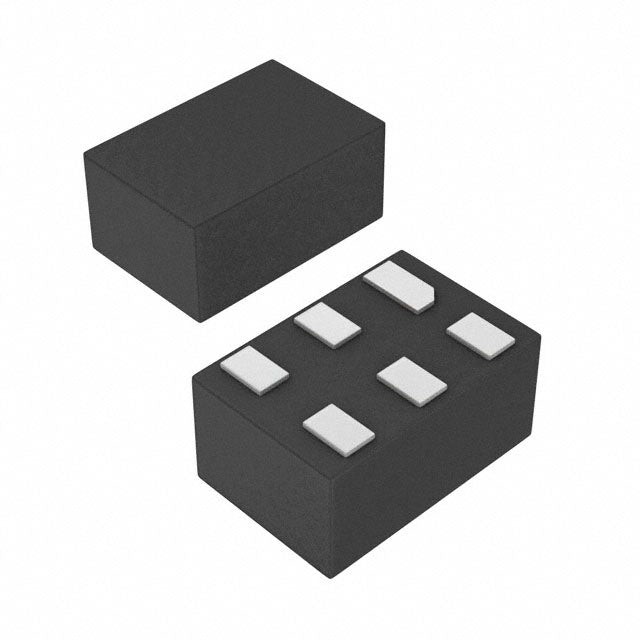

Analog Devices Inc./Maxim Integrated MAX6779LTB+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.70 | $9.70 |
| 15+ | $2.24 | $33.60 |
| 25+ | $2.19 | $54.75 |
| 50+ | $2.07 | $103.50 |
| 100+ | $1.82 | $182.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Function | Battery Monitor |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 2 |
| Fault Protection | - |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN |
| Supplier Device Package | 6-µDFN (1.5x1) |
| ROHS |  |
The MAX6779LTB+T from Analog Devices Inc./Maxim Integrated is a battery monitor supporting multi-chemistry battery types in 2-cell configurations. With an operating temperature range of -40°C to 85°C, it is built for demanding environments. The compact 6-WFDFN package enables integration into space-limited designs, making it suitable for industrial, medical, and telecom applications where reliable battery monitoring is essential.
- Wide temperature operation: -40°C to 85°C enables use in industrial and outdoor applications without additional thermal management.
- Multi-chemistry support: Flexible design accommodates various battery chemistries, simplifying inventory and design reuse.
- Compact footprint: The 6-WFDFN package minimizes PCB area, ideal for space-constrained portable and embedded designs.
Industrial Equipment Battery Monitoring
The MAX6779LTB+T operates from -40°C to 85°C, making it suitable for industrial environments where temperature extremes are common. Its multi-chemistry support allows flexible use with various battery types in factory automation and instrumentation.
Dual-Cell Portable Devices
For devices requiring two series-connected cells, this battery monitor provides essential monitoring in a compact 6-WFDFN package, ideal for space-constrained portable equipment.
Backup Power Systems
In backup power applications, the wide temperature range ensures reliable monitoring in unconditioned enclosures, while multi-chemistry support accommodates different backup battery technologies.
Medical Devices
The -40°C to 85°C range covers medical device requirements for sterilization and storage conditions, and the small package fits compact medical instrumentation.
Telecommunications Infrastructure
Outdoor telecom equipment experiences wide temperature swings; this monitor's temperature rating ensures consistent battery monitoring in remote and harsh installations.
- Q: What is the function of the MAX6779LTB+T?
- A: It is a Battery Monitor designed for monitoring battery parameters.
- Q: Which battery chemistries are supported?
- A: It supports Multi-Chemistry battery types.
- Q: How many cells can this battery monitor handle?
- A: It is designed for 2-cell battery configurations.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
- Q: What package is the MAX6779LTB+T available in?
- A: It comes in a 6-WFDFN package.
