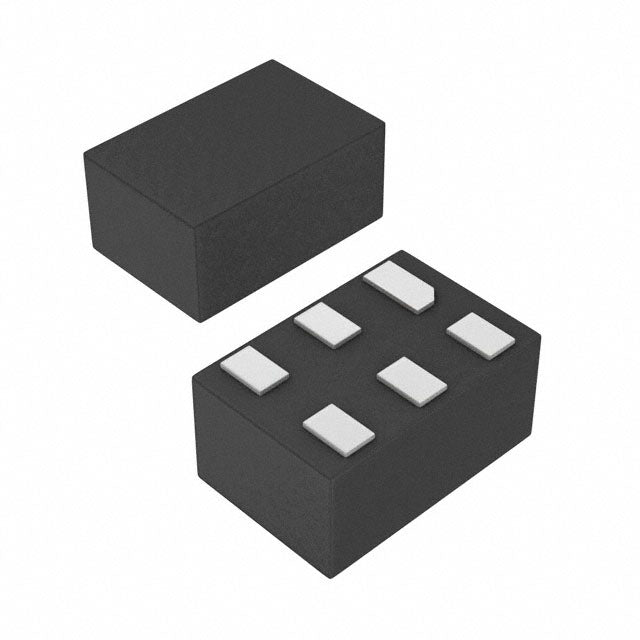

Analog Devices Inc./Maxim Integrated MAX6780LTA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.70 | $9.70 |
| 15+ | $2.24 | $33.60 |
| 25+ | $2.19 | $54.75 |
| 50+ | $2.07 | $103.50 |
| 100+ | $1.82 | $182.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Function | Battery Monitor |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 2 |
| Fault Protection | - |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN |
| Supplier Device Package | 6-µDFN (1.5x1) |
| ROHS |  |
The Analog Devices MAX6780LTA+T is a versatile Battery Monitor IC designed for multi-chemistry battery packs. It is specifically configured to monitor 2 cells, providing essential voltage information. This IC is packaged in a compact 6-WFDFN and operates over a wide temperature range from -40°C to 85°C, making it a flexible solution for various portable and industrial applications.
- Multi-Chemistry Support: Offers flexibility to work with various battery chemistries.
- Wide Operating Range: Rated for -40°C to 85°C, suitable for diverse environments.
- Compact Size: The 6-WFDFN package is ideal for space-limited designs.
- Dedicated Monitoring: Provides focused monitoring for 2-cell battery configurations.
Dual-Cell Portable Electronics
The MAX6780LTA+T is ideal for monitoring 2-cell battery packs in devices like high-end portable speakers and professional cameras.
Medical Devices
Its wide temperature range and multi-chemistry support make it suitable for medical monitoring equipment that requires reliable battery status.
Industrial Handhelds
For rugged handheld scanners and PDAs, this monitor provides essential battery voltage monitoring in a compact 6-WFDFN package.
Backup Battery Systems
In systems with 2-cell backup batteries, the MAX6780LTA+T can monitor the pack's health and status across a wide temperature range.
Test and Measurement Equipment
Portable test instruments benefit from the precise monitoring capabilities of this IC, ensuring accurate battery level indication.
- Q: What is the function of the MAX6780LTA+T?
- A: It is a Battery Monitor IC designed for multi-chemistry batteries.
- Q: How many cells does this battery monitor support?
- A: It supports 2 cells in a battery pack.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
- Q: What package is the MAX6780LTA+T available in?
- A: It is available in a 6-WFDFN package.
- Q: What battery chemistries is this IC compatible with?
- A: It is compatible with a variety of chemistries, as it is a multi-chemistry monitor.
