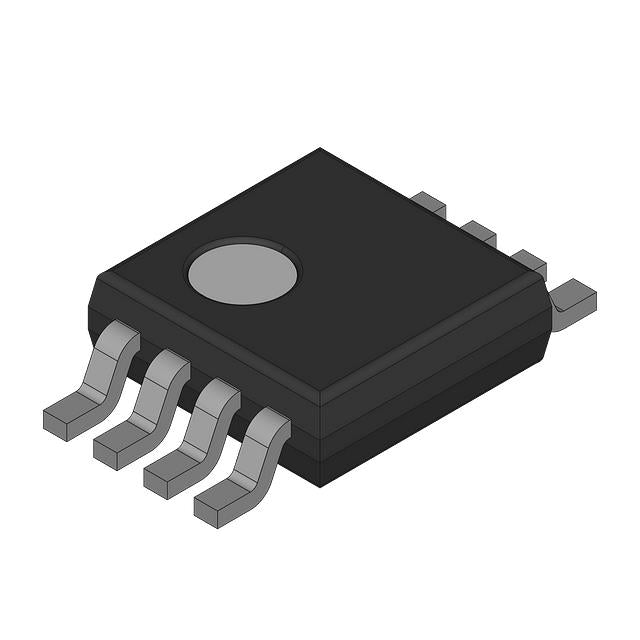

Analog Devices Inc./Maxim Integrated MAX7391CMTP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.76 | $8.76 |
| 15+ | $2.01 | $30.15 |
| 25+ | $1.97 | $49.25 |
| 50+ | $1.86 | $93.00 |
| 100+ | $1.64 | $164.00 |
| N+ | $0.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Type | Clock Generator |
| PLL | No |
| Input | Crystal |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | - |
| Divider/Multiplier | No/No |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-µMAX |
The Analog Devices MAX7391CMTP is a compact clock generator designed for a variety of applications. It features a single circuit with crystal input and clock output, without a PLL. The device operates over an extended temperature range of -40°C to 125°C, making it suitable for automotive and industrial environments. Available in an 8-TSSOP or 8-MSOP package, it is ideal for space-constrained designs.
- Wide Temperature Range: Operates from -40°C to 125°C for harsh environments.
- Crystal Input: Provides a precise and stable frequency reference.
- Small Package: 8-TSSOP/MSOP saves valuable board space.
- Simple Design: No PLL simplifies implementation and reduces cost.
Portable Electronics
Generate clock signals for microcontrollers and DSPs in battery-powered devices. The wide temperature range (-40°C to 125°C) ensures operation in extreme conditions.
Automotive Electronics
Provide timing for engine control units (ECUs) and infotainment systems. The high-temperature rating makes it suitable for under-hood applications.
Industrial Sensors
Generate clocks for industrial sensors and actuators. The crystal input provides a precise frequency reference.
Consumer Appliances
Provide timing for smart home devices and appliances. The small package (8-TSSOP/MSOP) is ideal for space-constrained designs.
Medical Devices
Generate clocks for portable medical monitoring equipment. The reliability and temperature range support critical applications.
IoT Devices
Provide timing for Internet of Things (IoT) sensors and gateways. The low power consumption and small size are ideal for IoT nodes.
- Q: What type of device is the MAX7391CMTP?
- A: It is a Clock Generator.
- Q: Does it have PLL support?
- A: No, it does not have a PLL.
- Q: What are the input and output types?
- A: It accepts Crystal inputs and provides Clock outputs.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is not specified in the provided data.
- Q: What is the package type?
- A: It comes in an 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) package.
