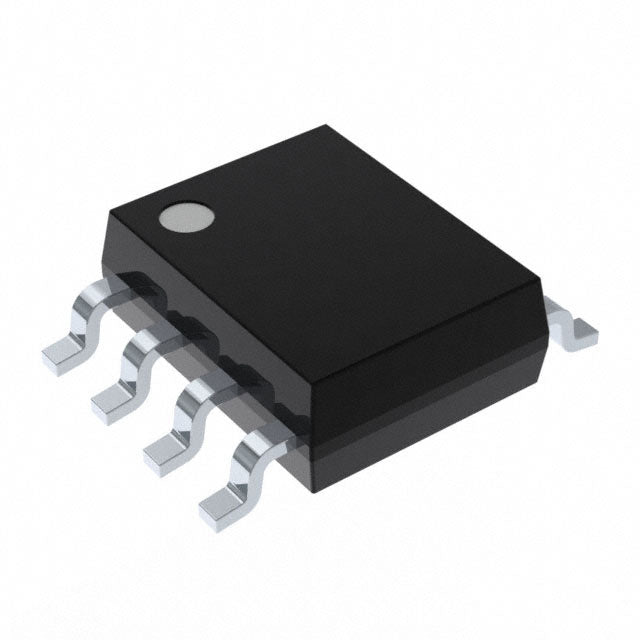

Analog Devices Inc./Maxim Integrated MAX755ESA+T
Regular price
$5.28
Regular price
$5.56
Sale price
$5.28
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.28 | $5.28 |
| 15+ | $5.12 | $76.80 |
| 25+ | $5.00 | $125.00 |
| 50+ | $4.73 | $236.50 |
| 100+ | $4.17 | $417.00 |
| N+ | $0.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Up/Step-Down |
| Output Configuration | Negative |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 9V |
| Voltage - Output (Min/Fixed) | -1.23V |
| Voltage - Output (Max) | -6.5V |
| Current - Output | 125mA |
| Frequency - Switching | 160kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
MAX755ESA+T.pdf
×
