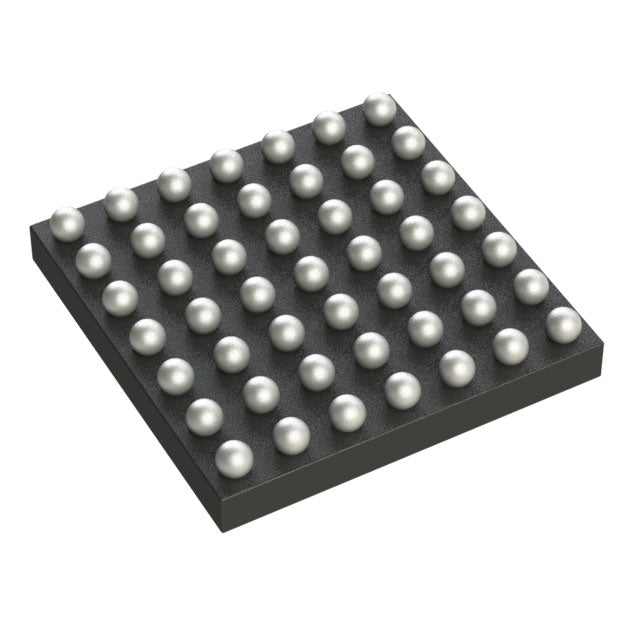

Analog Devices Inc./Maxim Integrated MAX77962EWJ06+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.50 | $7.50 |
| 15+ | $7.26 | $108.90 |
| 25+ | $7.10 | $177.50 |
| 50+ | $6.71 | $335.50 |
| 100+ | $5.92 | $592.00 |
| N+ | $1.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 |
| Current - Charging | Constant - Programmable |
| Programmable Features | I²C or Resistor |
| Fault Protection | Over Current, Over-Under Voltage |
| Charge Current - Max | 3.2A |
| Battery Pack Voltage | 7.6V |
| Voltage - Supply (Max) | 23V |
| Interface | I2C, SMBus |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 49-WFBGA, WLBGA |
| Supplier Device Package | 49-WLP (3.46x3.46) |
| ROHS |  |
The Analog Devices MAX77962EWJ06+T is a high-performance switching battery charger for 2-cell Lithium Ion battery packs. It delivers a charge current up to 3.2A and supports a battery pack voltage of 7.6V. The charger features I2C and SMBus interfaces for flexible system integration and includes over current and over-under voltage protection. Packaged in a compact 49-WFBGA, it operates from -40°C to 85°C, making it ideal for advanced portable electronics.
- Fast Charging: Supports up to 3.2A charge current for rapid charging of 2S Li-Ion packs.
- Advanced Communication: I2C and SMBus interfaces allow for sophisticated system-level charge management.
- Comprehensive Protection: Over current and over-under voltage protection ensures battery and system safety.
- Compact Design: The 49-WFBGA package is optimized for space-constrained, high-density PCB designs.
Dual-Cell Smartphones and Tablets
This charger is designed for high-end smartphones and tablets that use two series Li-Ion cells to achieve higher energy density and faster charging.
Ultra-Thin Laptops and 2-in-1s
With a 3.2A charge current and 7.6V pack voltage, it is suitable for ultra-portable laptops requiring efficient charging in a small form factor.
Portable Gaming Consoles
High-performance gaming handhelds benefit from the fast charging and robust protection features of this IC.
Drones and Aerial Photography
Drones using 2S Li-Ion packs require precise charging and protection, which the MAX77962 provides via its I2C/SMBus interface.
Professional Cameras and Camcorders
High-end cameras with dual-cell batteries can leverage the advanced charging algorithms and safety features of this charger.
Industrial Handheld Devices
Rugged handheld computers with 2S battery packs can be charged reliably across a wide temperature range.
- Q: What battery chemistry does the MAX77962 support?
- A: It supports Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 2 series cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3.2A.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 7.6V.
- Q: What fault protection features are available?
- A: It includes over current and over-under voltage protection.
- Q: What interfaces does it support?
- A: It supports both I2C and SMBus interfaces.
