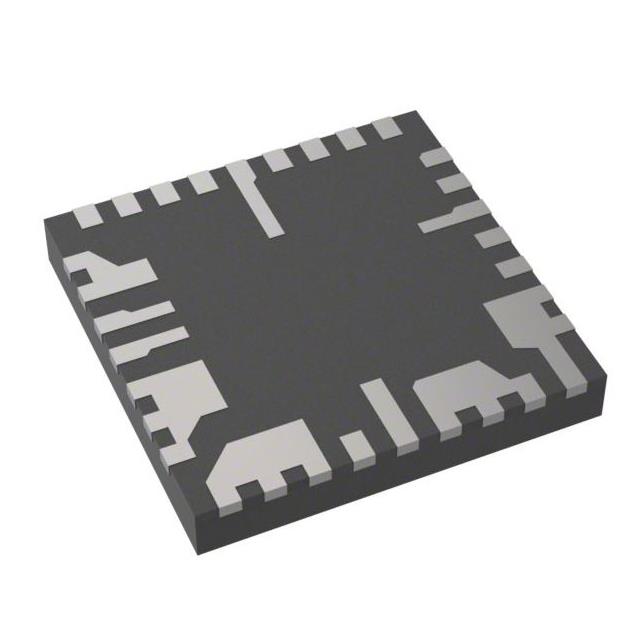

Analog Devices Inc./Maxim Integrated MAX77976EFD+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.13 | $5.13 |
| 15+ | $4.97 | $74.55 |
| 25+ | $4.86 | $121.50 |
| 50+ | $4.59 | $229.50 |
| 100+ | $4.05 | $405.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tray |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | I²C or Resistor |
| Fault Protection | Over Current, Over-Under Voltage |
| Charge Current - Max | 5.5A |
| Battery Pack Voltage | 12V (Max) |
| Voltage - Supply (Max) | 19V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerUFQFN |
| Supplier Device Package | 32-FC2QFN (4x4) |
| ROHS |  |
The MAX77976EFD+ is a high-current, single-cell Lithium Ion battery charger from Analog Devices. It delivers up to 5.5A of charge current and supports a maximum battery voltage of 12V. Featuring an I2C interface for precise control, it integrates Over Current and Over-Under Voltage protection. Housed in a compact 32-PowerUFQFN package, this charger is designed for fast-charging portable electronics and industrial handheld devices operating in temperatures from -40°C to 85°C.
- Fast Charging: 5.5A maximum charge current significantly reduces charging time for high-capacity batteries.
- Precise Control: I2C interface enables dynamic voltage and current adjustments for optimized charging profiles.
- Robust Protection: Over Current and Over-Under Voltage safeguards protect the battery and system from faults.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for industrial environments.
High-Capacity Portable Electronics
With a 5.5A charge current and I2C interface, the MAX77976EFD+ is ideal for tablets and high-end portable devices that require fast charging and dynamic voltage scaling for single-cell Lithium Ion batteries.
Smartphones with Fast Charging
Supporting up to 12V input, this charger enables rapid charging in smartphones, reducing downtime while maintaining safety through Over Current and Over-Under Voltage protection.
USB-PD Enabled Devices
The I2C interface allows seamless integration with USB Power Delivery controllers, making it suitable for devices that negotiate higher voltages for quicker charge cycles.
Compact Wearable Charging Cradles
The 32-PowerUFQFN package is space-efficient, making it suitable for compact charging cradles and accessories for wearables that need a reliable single-cell charging solution.
Industrial Handheld Terminals
Operating from -40°C to 85°C, this charger is suitable for rugged handheld terminals used in warehouses and field services, ensuring reliable performance in demanding environments.
- Q: What battery chemistry does the MAX77976EFD+ support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can this charger handle?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 5.5A.
- Q: What is the maximum battery pack voltage?
- A: The battery pack voltage can reach up to 12V (Max).
- Q: What fault protection features are included?
- A: It includes Over Current and Over-Under Voltage protection.
- Q: What control interface does it use?
- A: It uses an I2C interface for control and configuration.
