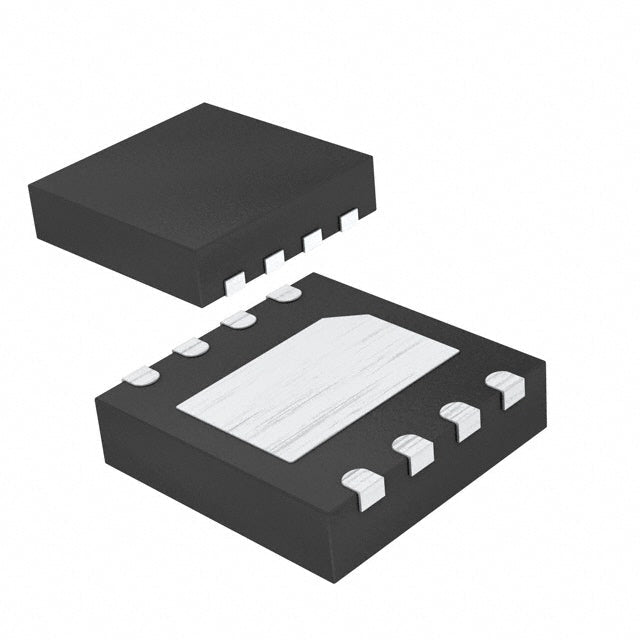

Analog Devices Inc./Maxim Integrated MAX8510ETA33+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.50 | $3.50 |
| 15+ | $0.81 | $12.15 |
| 25+ | $0.79 | $19.75 |
| 50+ | $0.75 | $37.50 |
| 100+ | $0.66 | $66.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 μA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (2x2) |
| ROHS |  |
The MAX8510ETA33+T from Analog Devices is a fixed 3.3V low dropout regulator delivering up to 120mA. It features a very low typical dropout of 0.12V and excellent power supply rejection, making it ideal for noise-sensitive portable electronics. The compact 8-TDFN-EP (2x2) package is designed for space-constrained applications.
- Superior Noise Rejection: PSRR of 78dB to 54dB (1kHz-100kHz) ensures clean power for sensitive RF and analog circuits.
- Very Low Dropout: 0.12V typical dropout at 120mA maximizes efficiency in low-headroom designs.
- Compact Size: 8-TDFN-EP (2x2) package is one of the smallest available for this current rating.
- Low Quiescent Current: 90 μA helps extend battery life in portable devices.
RF and Wireless Modules
With excellent PSRR of 78dB to 54dB (1kHz-100kHz), it is ideal for powering RF transceivers and wireless modules where noise can degrade signal integrity.
Portable Audio Players
The low dropout and clean output help reduce audible noise in audio codecs and amplifiers, improving sound quality.
Battery-Powered Sensors
Its 90 μA quiescent current and 120mA output are well-suited for low-power sensor nodes in IoT applications.
Camera Modules
Provides a stable 3.3V rail for image sensors and processors, ensuring consistent performance in compact camera systems.
Wearable Devices
The tiny 8-TDFN-EP (2x2) package is perfect for smartwatches and fitness trackers where space is at a premium.
Precision Voltage References
Its high PSRR makes it suitable for powering precision voltage references and ADCs in measurement equipment.
- Q: What is the output voltage of the MAX8510ETA33+T?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can provide up to 120mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 0.12V at 120mA.
- Q: What is the quiescent current?
- A: The quiescent current is 90 μA.
- Q: What package is available?
- A: It comes in an 8-TDFN-EP (2x2) package.
