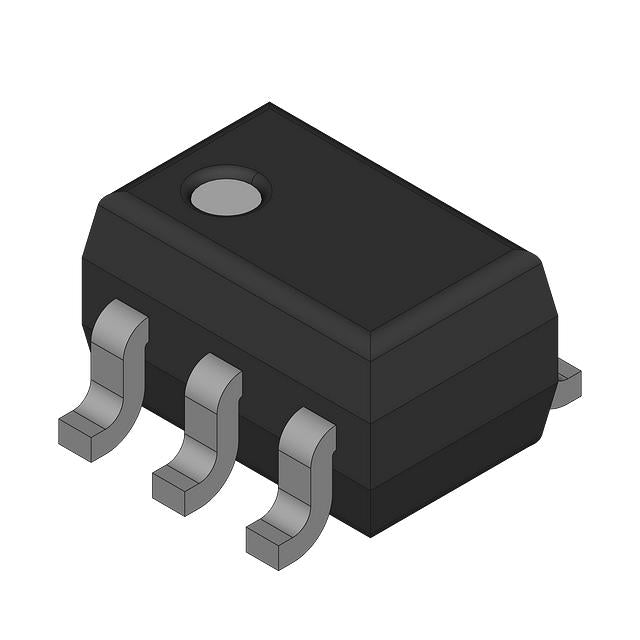

Analog Devices Inc./Maxim Integrated MAX8510EXK16-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.37 | $0.37 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The MAX8510EXK16-T from Analog Devices is a fixed 1.6V LDO regulator delivering 120mA. Its SC-70-5 package is among the smallest available, ideal for compact portable electronics. With 90µA quiescent current and excellent PSRR up to 100kHz, it ensures clean, efficient power for sensitive RF and mixed-signal circuits.
- Ultra-Compact Footprint: SC-70-5 saves board space in wearables and earbuds.
- Broadband Noise Rejection: 78dB to 54dB PSRR from 1kHz to 100kHz protects RF circuits.
- Low Power Consumption: 90µA quiescent current preserves battery in standby.
- Stable Low Voltage: 1.6V output matches modern low-voltage digital ICs.
Smartphone Camera Modules
1.6V rail for image sensors with 120mA peak current, maintaining low noise for image quality.
Bluetooth Low Energy Modules
Stable 1.6V supply for BLE SoCs, with 90µA quiescent current extending coin-cell life.
Portable Audio Players
High PSRR at audio frequencies reduces digital noise from the main processor.
Wearable Health Monitors
Compact SC-70-5 package fits in small PCBs for heart-rate sensors.
FPGA Core Voltage
Provides clean 1.6V for low-power FPGA logic cores in handheld instruments.
Wireless Earbuds
Efficient power conversion for DSP and Bluetooth chips in tiny form factors.
- Q: What is the output voltage?
- A: Fixed 1.6V output.
- Q: What is the maximum output current?
- A: 120mA.
- Q: What is the input voltage range?
- A: Minimum input is 1.6V; typical operation up to 5.5V.
- Q: What is the quiescent current?
- A: 90µA, suitable for low-power devices.
- Q: What is the PSRR performance?
- A: 78dB at 1kHz, decreasing to 54dB at 100kHz.
- Q: What package is available?
- A: SC-70-5, ultra-compact for space-constrained designs.
