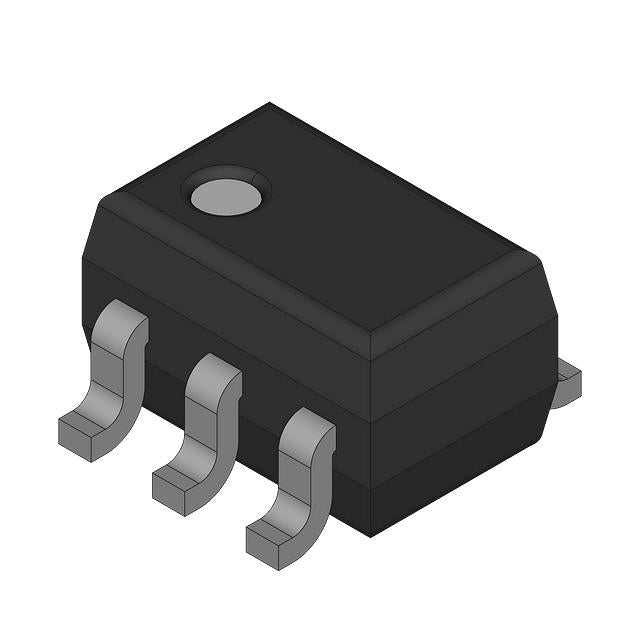

Analog Devices Inc./Maxim Integrated MAX8510EXK18-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.28 | $3.28 |
| 15+ | $0.75 | $11.25 |
| 25+ | $0.74 | $18.50 |
| 50+ | $0.70 | $35.00 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The MAX8510EXK18-T from Analog Devices is a low-dropout linear regulator delivering a fixed 1.8V output with up to 120mA. Housed in a tiny SC-70-5 package, it is designed for space-constrained portable devices. With 90 µA quiescent current and high PSRR (78dB at 1kHz), it ensures clean, efficient power for sensitive electronics.
- Ultra-Compact: SC-70-5 package minimizes PCB area for wearable and IoT designs.
- High PSRR: 78dB at 1kHz filters switching noise from upstream converters.
- Low Quiescent Current: 90 µA helps extend battery life in portable devices.
- Stable 1.8V Output: Ideal for modern low-voltage digital and RF ICs.
Compact Portable Electronics
The SC-70-5 package is one of the smallest available, ideal for earbuds, smartwatches, and other miniaturized devices requiring a 1.8V rail.
RF Transceivers
With 78dB PSRR at 1kHz, it provides clean power to RF circuits, reducing spurious emissions and improving signal integrity.
Battery-Powered Sensors
90 µA quiescent current balances performance and efficiency for always-on environmental sensors in smart buildings.
Digital Logic Power
Provides a stable 1.8V supply for low-voltage microcontrollers and memory in battery-operated instruments.
Audio Codec Supplies
Low noise and high PSRR make it suitable for powering audio codecs in portable media players, minimizing hum.
Wearable Fitness Trackers
The tiny footprint and 120mA capability support the mixed-signal ICs in modern fitness bands.
- Q: What is the output voltage of the MAX8510EXK18-T?
- A: The fixed output voltage is 1.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 120mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout voltage is not specified in the provided data; refer to the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 90 µA.
- Q: What package is available?
- A: It comes in a SC-70-5 package.
