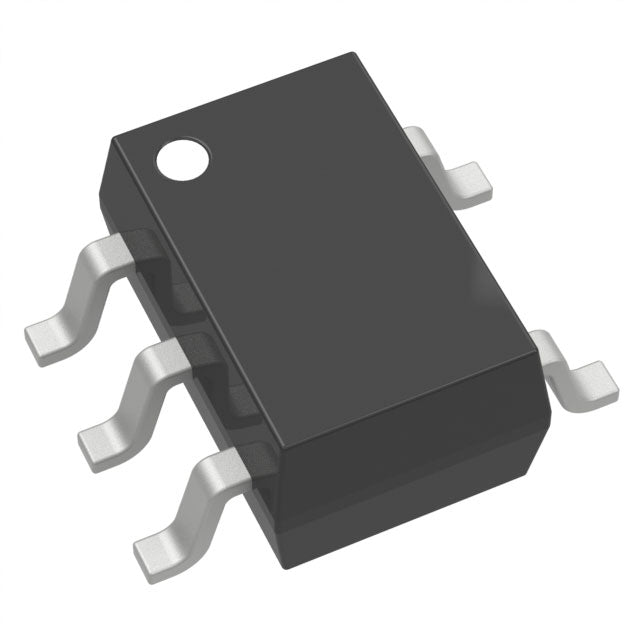

Analog Devices Inc./Maxim Integrated MAX8510EXK27+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.88 | $2.88 |
| 15+ | $0.66 | $9.90 |
| 25+ | $0.65 | $16.25 |
| 50+ | $0.61 | $30.50 |
| 100+ | $0.54 | $54.00 |
| N+ | $0.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.135V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| ROHS |  |
The MAX8510EXK27+T is a 2.7V low-dropout linear regulator from Analog Devices, offering 120mA output current in a tiny SC-70-5 package. With an ultra-low quiescent current of 90µA, it is optimized for battery-powered applications. The 0.135V dropout at full load ensures efficient use of battery voltage. Its high PSRR of 78dB at 1kHz makes it suitable for noise-sensitive RF and analog circuits.
- Ultra-Low Power: 90µA quiescent current extends battery life.
- Excellent Noise Rejection: 78dB PSRR at 1kHz for clean RF power.
- Low Dropout: 0.135V at 120mA maximizes efficiency.
- Compact Footprint: SC-70-5 package saves board space.
Battery-Powered Wearables
The 90µA quiescent current and 120mA output are perfect for smartwatches and fitness bands, extending operation between charges.
Bluetooth Low Energy Modules
Stable 2.7V rail with 78dB PSRR at 1kHz ensures reliable BLE communication by reducing power supply noise.
Portable Medical Monitors
Low dropout of 0.135V maintains regulation during battery discharge, critical for glucose meters and pulse oximeters.
Sensor Interfaces
Clean power for MEMS sensors and signal conditioning circuits, improving measurement accuracy.
Handheld GPS Units
Compact SC-70-5 package and low power consumption suit portable navigation devices.
Remote Controls
Efficient power conversion for IR and RF remote controls, prolonging battery life.
- Q: What is the output voltage?
- A: Fixed 2.7V output.
- Q: What is the maximum current?
- A: 120mA maximum output current.
- Q: What is the input voltage range?
- A: Input voltage is 2.7V (typical).
- Q: What is the dropout voltage?
- A: 0.135V at 120mA (typical).
- Q: What is the quiescent current?
- A: Only 90µA quiescent current.
- Q: What package is available?
- A: SC-70-5 package.
