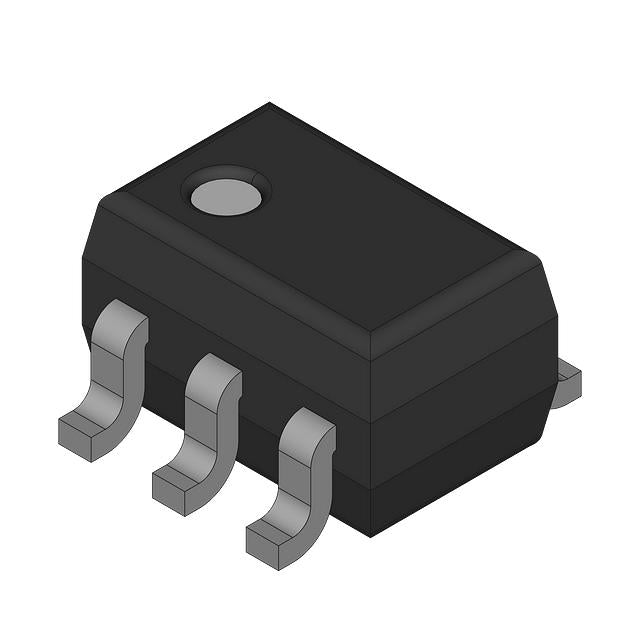

Analog Devices Inc./Maxim Integrated MAX8510EXK29-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.28 | $3.28 |
| 15+ | $0.75 | $11.25 |
| 25+ | $0.74 | $18.50 |
| 50+ | $0.70 | $35.00 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.135V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The MAX8510EXK29-T from Analog Devices Inc./Maxim Integrated is a fixed 2.85V LDO regulator delivering 120mA. It features a very low dropout voltage of 0.135V typical at full load and a quiescent current of 90 µA. With excellent PSRR of 78dB at 1kHz, it is designed for noise-sensitive RF and audio applications. The SC-70-5 package is compact and suitable for portable devices.
- Ultra-Low Dropout: 0.135V at 120mA enables operation from near-threshold input voltages.
- High PSRR: 78dB at 1kHz reduces supply noise for RF and audio circuits.
- Low Quiescent Current: 90 µA extends battery life in standby modes.
- Compact Package: SC-70-5 saves board space in miniaturized designs.
RF Transceivers
The high PSRR (78dB at 1kHz) ensures clean power for RF circuits, reducing spurious emissions and improving signal integrity.
Audio Codecs
Low dropout and low noise make it suitable for powering audio codecs in smartphones and portable players, preserving audio quality.
Battery-Powered Sensors
With 90 µA quiescent current, it is ideal for always-on sensors in IoT devices, minimizing standby drain.
Portable GPS Modules
Stable 2.85V output supports GPS receivers, ensuring accurate positioning with minimal power noise.
Bluetooth Low Energy (BLE) Modules
Provides a clean supply for BLE SoCs, enhancing wireless performance and range.
Wearable Health Monitors
Compact SC-70-5 package fits small PCBs in fitness trackers, delivering reliable power to heart-rate sensors.
