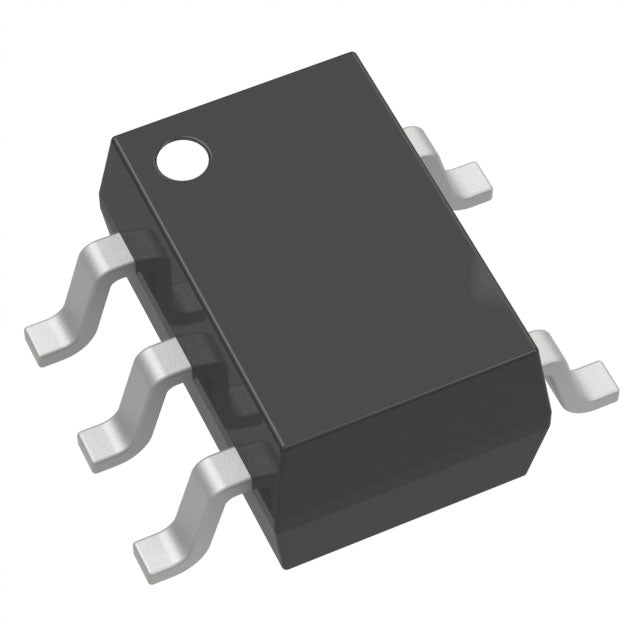

Analog Devices Inc./Maxim Integrated MAX8510EXK30+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.77 | $2.77 |
| 15+ | $2.69 | $40.35 |
| 25+ | $2.63 | $65.75 |
| 50+ | $2.48 | $124.00 |
| 100+ | $2.19 | $219.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| ROHS |  |
The MAX8510EXK30+T from Analog Devices is a fixed 3.0V low-dropout linear regulator designed for ultra-low-power applications. It delivers up to 120mA with a dropout voltage of just 0.12V at full load. The quiescent current is an incredibly low 90µA, making it ideal for battery-powered devices. Packaged in a miniature SC-70-5, this LDO offers excellent PSRR of 78dB at 1kHz, ensuring clean power for sensitive RF and analog circuits.
- Ultra-Low Quiescent Current: 90µA extends battery life in portable and wearable devices.
- Excellent Noise Rejection: 78dB PSRR at 1kHz protects RF and audio circuits.
- Minimal Dropout: 0.12V at 120mA allows operation with very low input-output differential.
- Smallest Package: SC-70-5 is ideal for space-constrained designs.
Wearable Fitness Trackers
The ultra-low 90µA quiescent current and tiny SC-70-5 package make it perfect for powering sensors and MCUs in wearables, maximizing battery life.
Bluetooth Low Energy Modules
Provides a clean 3.0V rail for BLE SoCs, with 78dB PSRR at 1kHz to ensure stable RF performance and reduce transmission errors.
Portable Medical Monitors
Its low dropout and small footprint suit compact glucose monitors and pulse oximeters, delivering reliable power for sensitive analog front-ends.
IoT Sensor Nodes
Ideal for always-on IoT devices, the low quiescent current extends battery life while maintaining a stable 3.0V supply for environmental sensors.
Hearing Aids and Audio Devices
The low noise and high PSRR make it suitable for audio amplification circuits, ensuring clear sound without power supply hum.
- Q: What is the output voltage of the MAX8510EXK30+T?
- A: This LDO provides a fixed output voltage of 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 120mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 3.0V up to 5.5V.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.12V at a 120mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 90µA.
- Q: What package is available?
- A: It is available in a compact SC-70-5 package.
