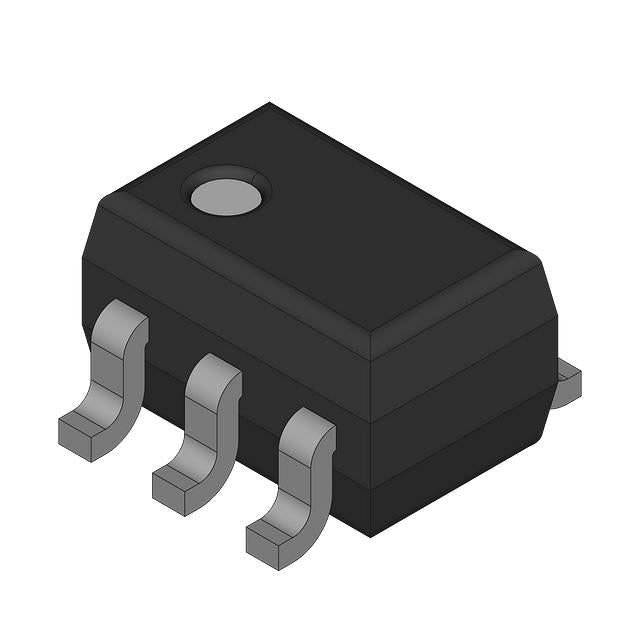

Analog Devices Inc./Maxim Integrated MAX8510EXK33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.40 | $4.40 |
| 15+ | $1.01 | $15.15 |
| 25+ | $0.99 | $24.75 |
| 50+ | $0.94 | $47.00 |
| 100+ | $0.83 | $83.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The Analog Devices MAX8510EXK33 is a fixed 3.3V LDO delivering 120mA with an ultra-low dropout of 0.12V. Its 90µA quiescent current and high PSRR (78dB at 1kHz) make it perfect for battery-powered RF and audio applications. The SC-70-5 package is ideal for compact designs.
- Ultra-Low Dropout: 0.12V at 120mA maximizes usable battery range.
- High PSRR: 78dB at 1kHz for clean RF/audio supplies.
- Low Quiescent Current: 90µA extends standby time.
- Miniature Package: SC-70-5 fits space-constrained PCBs.
Smartphone Camera Modules
Ultra-low dropout (0.12V) maintains 3.3V even as battery voltage dips, ensuring stable imaging sensor operation.
Bluetooth Low Energy Modules
120mA output and 90µA quiescent current balance performance with battery life in BLE beacons.
Portable Audio Players
High PSRR (78dB at 1kHz) delivers clean power to DACs and headphone amplifiers.
GPS Receivers
Stable 3.3V rail for RF front-ends, with low noise to avoid desensitization.
Medical Wearable Patches
Compact SC-70-5 package and low dropout support miniaturized health monitors.
Wireless Earbuds
Efficient power conversion extends playback time in tiny form factors.
- Q: What is the output voltage?
- A: Fixed 3.3V output.
- Q: What is the maximum output current?
- A: 120mA.
- Q: What is the input voltage range?
- A: Not specified; refer to datasheet.
- Q: What is the dropout voltage?
- A: Very low 0.12V at 120mA (typical).
- Q: What is the quiescent current?
- A: 90µA.
- Q: What package is available?
- A: SC-70-5 (SOT-353).
