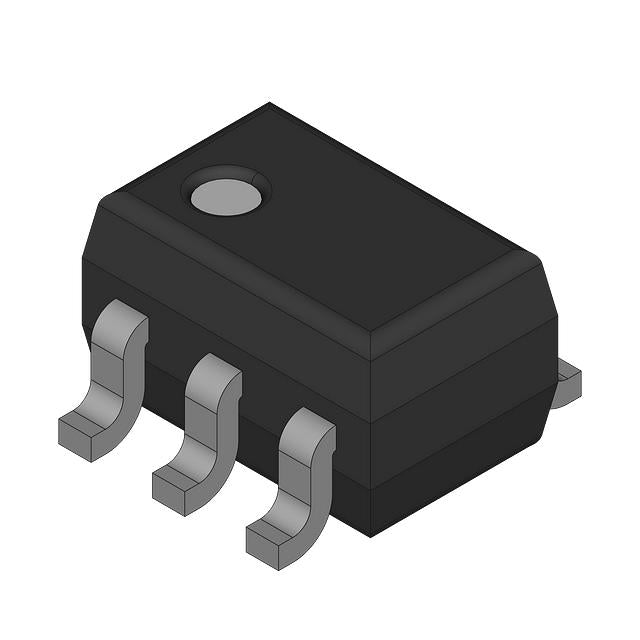

Analog Devices Inc./Maxim Integrated MAX8510EXK33-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.28 | $3.28 |
| 15+ | $0.75 | $11.25 |
| 25+ | $0.74 | $18.50 |
| 50+ | $0.70 | $35.00 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The MAX8510EXK33-T from Analog Devices is a 3.3V fixed-output LDO regulator capable of 120mA. With a typical dropout of 0.12V at full load and 90µA quiescent current, it excels in battery-powered applications. The SC-70-5 package and high PSRR make it a compact, low-noise solution.
- Ultra-Low Dropout: 0.12V at 120mA enables efficient regulation from near-threshold input voltages.
- Low Quiescent Current: 90µA extends battery life in portable and standby applications.
- Excellent PSRR: 78dB at 1kHz to 54dB at 100kHz filters wideband noise.
- Compact SC-70-5: Small footprint ideal for space-limited designs.
Portable Battery Devices
Ultra-low 0.12V dropout at 120mA maximizes battery life in handheld electronics.
RF and Wireless Modules
High PSRR (78dB at 1kHz) ensures clean 3.3V supply for RF transceivers, reducing interference.
Sensor Interfaces
Stable 3.3V rail for MEMS sensors and signal conditioning circuits, with low quiescent current for always-on sensing.
Audio Codec Power
Provides noise-free 3.3V for audio codecs, leveraging 54dB PSRR at 100kHz to suppress high-frequency noise.
Wearable Electronics
SC-70-5 package and 90µA quiescent current make it ideal for space-constrained wearables.
FPGA Auxiliary Supply
Supplies 3.3V auxiliary rail for FPGAs, ensuring stable operation during logic transitions.
