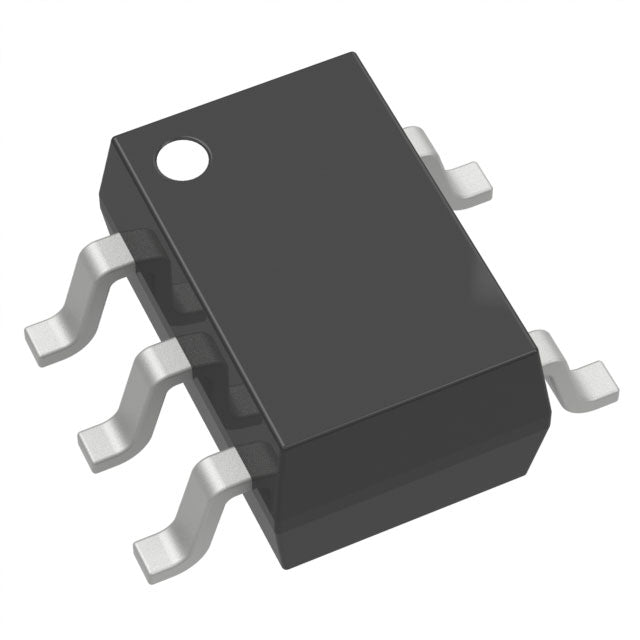

Analog Devices Inc./Maxim Integrated MAX8510EXK33+TG65
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 120mA (Typ) |
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 90 μA |
| Current - Supply (Max) | - |
| PSRR | 78dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| ROHS |  |
The MAX8510EXK33+TG65 from Analog Devices is a fixed 3.3V low dropout linear regulator designed for low-power, noise-sensitive applications. It delivers up to 120mA with a typical dropout of just 0.12V and a quiescent current of 90 μA. Its superior PSRR (78dB at 1kHz) ensures clean power for RF and analog circuits. The ultra-compact SC-70-5 package makes it an excellent choice for space-constrained designs.
- Superior Noise Rejection: 78dB PSRR at 1kHz ensures clean power for RF and precision analog circuits.
- Ultra-Low Quiescent Current: 90 μA extends battery life in always-on applications.
- Minimal Dropout: 0.12V at 120mA maximizes efficiency in low-voltage systems.
- Smallest Package: SC-70-5 footprint is ideal for miniaturized electronics.
RF Transceivers and PLLs
With excellent PSRR of 78dB at 1kHz and 54dB at 100kHz, the MAX8510EXK33+TG65 is perfect for powering RF transceivers, VCOs, and PLLs, ensuring minimal phase noise and spurious signals.
Ultra-Compact IoT Sensors
The tiny SC-70-5 package and low 90 μA quiescent current make this regulator ideal for miniaturized IoT nodes, wireless sensor tags, and smart home devices requiring a stable 3.3V rail.
Battery-Powered Medical Devices
For hearing aids, glucose monitors, and portable health trackers, the low dropout of 0.12V at 120mA allows efficient operation from a single coin cell or small Li-ion battery.
Precision Analog Front-Ends
The high PSRR across a wide frequency range (1kHz to 100kHz) makes it suitable for powering precision op-amps, ADCs, and sensor bridges in industrial and medical instrumentation.
Low-Power Microcontrollers
This LDO provides a clean 3.3V supply for low-power MCUs in always-on applications, reducing noise-induced errors and improving overall system reliability.
- Q: What is the output voltage of the MAX8510EXK33+TG65?
- A: The output voltage is fixed at 3.3V.
- Q: What is the maximum output current?
- A: This LDO can provide up to 120mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the official datasheet.
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 0.12V at a 120mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 90 μA.
- Q: What package is this device in?
- A: It comes in a SC-70-5 package.
