Analog Devices Inc./Maxim Integrated MAX8530EBTKG-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.92 | $4.92 |
| 15+ | $1.13 | $16.95 |
| 25+ | $1.11 | $27.75 |
| 50+ | $1.05 | $52.50 |
| 100+ | $0.92 | $92.00 |
| N+ | $0.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.8V, 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 100mA |
| Current - Output | 200mA, 150mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, CSPBGA |
| Supplier Device Package | 6-UCSP (1.57x1.05) |

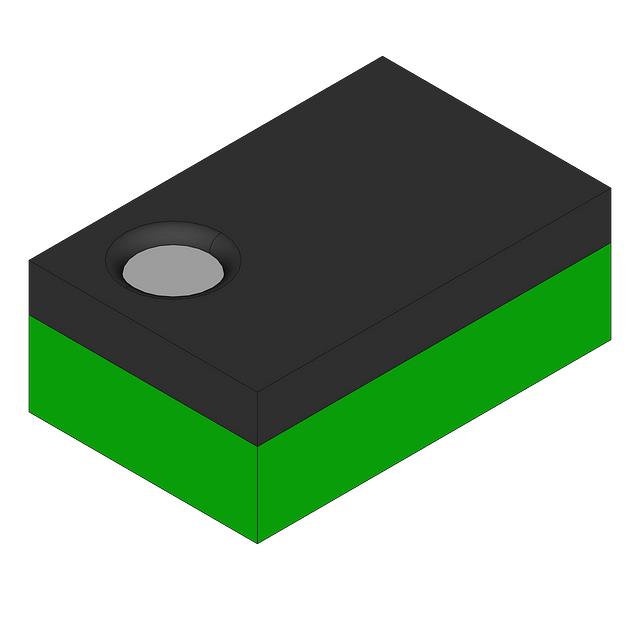

The MAX8530EBTKG-T is a dual-output, low-dropout linear regulator from Analog Devices. It provides fixed 2.8V and 3.0V outputs with current ratings of 200mA and 150mA. Housed in an ultra-compact 6-UCSP package, it is designed for space-constrained portable applications. With a low 0.2V dropout and 220 µA quiescent current, it offers excellent efficiency for battery-powered devices.
- Space-Saving Design: The 6-UCSP package (1.57x1.05mm) is one of the smallest available, ideal for miniaturized electronics.
- Dual Output Flexibility: Two independent regulated outputs in a single package reduce component count and board space.
- Low Dropout Voltage: The 0.2V dropout at 100mA allows operation with minimal headroom, improving efficiency.
- Low Power Consumption: 220 µA quiescent current helps extend battery life in portable devices.
Compact Portable Electronics
The tiny 6-UCSP package (1.57x1.05mm) is perfect for space-constrained designs like smartphones, wearables, and wireless earbuds where PCB area is at a premium.
Dual Supply Rail Generation
Provides two independent regulated rails (2.8V and 3.0V) from a single device, simplifying power supply design for mixed-voltage systems.
Battery-Powered Sensors
The low 220 µA quiescent current and 0.2V dropout help maximize battery life in IoT sensors and remote monitoring devices.
Camera Module Power
Ideal for powering image sensors and camera modules that require separate analog and digital supply voltages with low noise.
Portable Audio Players
The low dropout and stable output ensure clean power for audio DACs and amplifiers, minimizing distortion and noise in portable audio equipment.
- Q: What are the output voltages of the MAX8530EBTKG-T?
- A: It is a dual LDO with fixed outputs of 2.8V and 3.0V.
- Q: What is the maximum output current per channel?
- A: The outputs are rated at 200mA and 150mA respectively.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; consult the datasheet for limits.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.2V at a 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA for the dual device.
- Q: What package is available?
- A: It is offered in a compact 6-UCSP (1.57x1.05mm) package.
