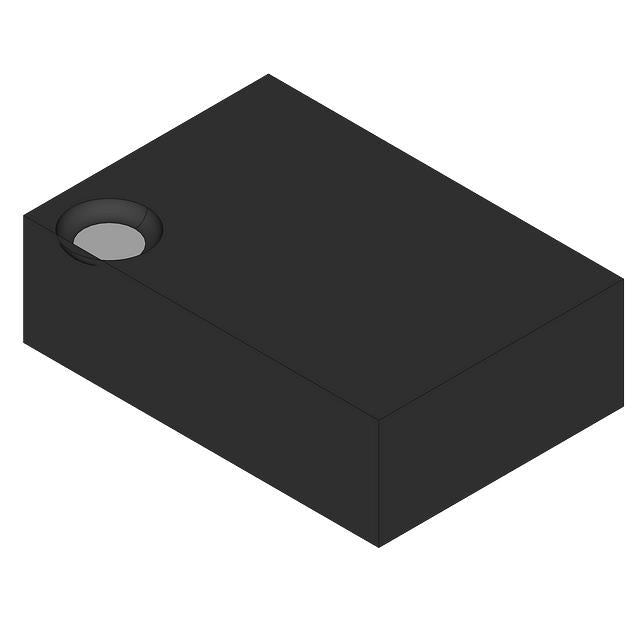

Analog Devices Inc./Maxim Integrated MAX8530ETTP2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.36 | $7.36 |
| 15+ | $1.69 | $25.35 |
| 25+ | $1.66 | $41.50 |
| 50+ | $1.56 | $78.00 |
| 100+ | $1.38 | $138.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.5V, 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 100mA |
| Current - Output | 200mA, 150mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (3x3) |
The MAX8530ETTP2 is a dual-output low dropout linear regulator providing 2.5V and 1.8V rails. It delivers up to 200mA and 150mA respectively, with a low dropout voltage of 0.2V. Its compact 6-TDFN package and low quiescent current make it ideal for portable and battery-powered applications.
- Dual Outputs: Provides two regulated voltages in one package, saving board space and simplifying power design.
- Low Power Consumption: 220µA quiescent current helps maximize battery life in portable devices.
- Low Dropout: 0.2V dropout at 100mA allows operation from low input voltages.
- Compact Size: 6-TDFN (3x3) package is ideal for space-constrained designs.
Dual-Rail Power for Mobile Devices
The MAX8530ETTP2 provides two independent low-noise rails (2.5V and 1.8V) from a single package, ideal for powering mixed-signal SoCs in smartphones and tablets.
Camera Module Power
Use the 2.5V rail for the image sensor's analog supply and the 1.8V rail for the digital interface, ensuring clean power for high-quality image capture.
Portable Audio Players
Its low quiescent current (220µA) extends battery life, while the low dropout voltage maintains regulation as the battery discharges.
Wireless Connectivity Modules
Power the RF transceiver (2.5V) and baseband processor (1.8V) with separate, stable rails to minimize interference and improve signal integrity.
Compact IoT Sensors
The small 6-TDFN package and dual outputs make it perfect for space-constrained IoT nodes requiring multiple voltage levels.
- Q: What are the output voltages of the MAX8530ETTP2?
- A: It provides two regulated outputs: 2.5V and 1.8V.
- Q: What is the maximum output current per channel?
- A: The 2.5V output supports 200mA, and the 1.8V output supports 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.2V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: It is available in a 6-TDFN (3x3) package.
