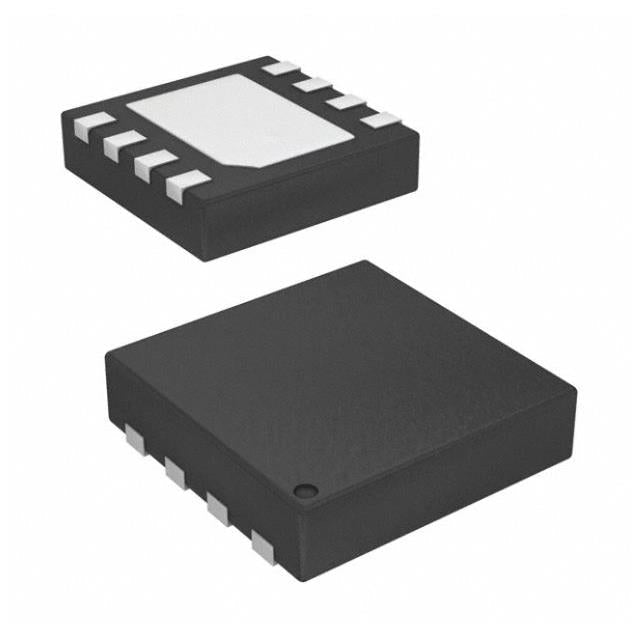

Analog Devices Inc./Maxim Integrated MAX8559ETADK+T
Regular price
$1.16
Regular price
$1.22
Sale price
$1.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.16 | $1.16 |
| 15+ | $1.12 | $16.80 |
| 25+ | $1.10 | $27.50 |
| 50+ | $1.04 | $52.00 |
| 100+ | $0.92 | $92.00 |
| N+ | $0.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.15V, 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 100mA, 0.12V @ 100mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 290 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB ~ 54dB (10kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) |
MAX8559ETADK+T.pdf
×
