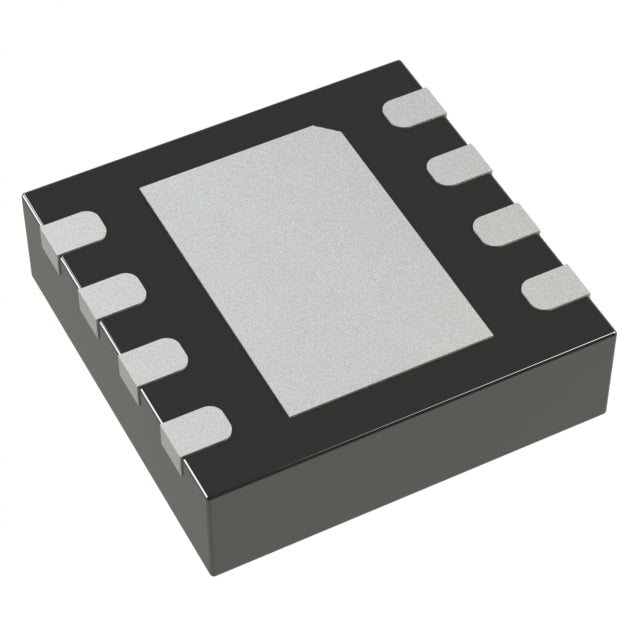

Analog Devices Inc./Maxim Integrated MAX8559ETAKG+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.08 | $5.08 |
| 15+ | $1.17 | $17.55 |
| 25+ | $1.14 | $28.50 |
| 50+ | $1.08 | $54.00 |
| 100+ | $0.95 | $95.00 |
| N+ | $0.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.8V, 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 100mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 290 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB ~ 54dB (10kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (3x3) |
The MAX8559ETAKG+T is a dual-output LDO from Analog Devices, offering 300mA per channel at fixed 2.8V and 3V. It features a low dropout of 0.12V at 100mA and a quiescent current of 290 µA. With PSRR of 70dB to 54dB, it ensures clean power for noise-sensitive circuits. The 8-TDFN-EP (3x3) package includes an exposed pad for enhanced thermal performance.
- Dual Fixed Outputs: 2.8V and 3V rails simplify powering mixed-voltage systems without external resistors.
- Low Dropout: 0.12V at 100mA maximizes efficiency in battery-powered designs.
- Excellent PSRR: 70dB-54dB rejection ensures stable operation in noisy environments.
- Thermal Efficiency: Exposed pad in 8-TDFN-EP package improves heat dissipation for reliable 300mA operation.
Dual-Voltage Microcontroller Systems
Provides 2.8V and 3V rails, ideal for MCUs with separate I/O and analog supply pins, ensuring stable operation.
Battery-Powered Wireless Modules
Low 290 µA quiescent current and dual 300mA outputs support Zigbee, BLE, and LoRa modules in remote sensors.
Noise-Sensitive Sensor Conditioning
High PSRR (70dB-54dB) filters power noise, improving accuracy of bridge sensors and precision amplifiers.
Portable Medical Devices
Compact 8-TDFN-EP package and low dropout enable reliable power in glucose monitors and pulse oximeters.
Automotive Infotainment
Stable 2.8V/3V rails power display drivers and audio codecs, reducing electromagnetic interference.
Industrial Process Control
Dual outputs with 300mA capability drive transducers and control loops in harsh electrical environments.
- Q: What is the output voltage of the MAX8559ETAKG+T?
- A: This dual LDO provides two regulated outputs: 2.8V and 3V.
- Q: What is the maximum output current per channel?
- A: Each output can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The minimum input voltage is 2.8V for the 2.8V output and 3V for the 3V output.
- Q: What is the dropout voltage?
- A: Dropout is typically 0.12V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 290 µA.
- Q: What package is available?
- A: It is available in an 8-TDFN-EP (3x3) package with exposed pad for better thermal dissipation.
