Analog Devices Inc./Maxim Integrated MAX8601ETD+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.18 | $6.18 |
| 15+ | $5.98 | $89.70 |
| 25+ | $5.85 | $146.25 |
| 50+ | $5.53 | $276.50 |
| 100+ | $4.88 | $488.00 |
| N+ | $0.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 14V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

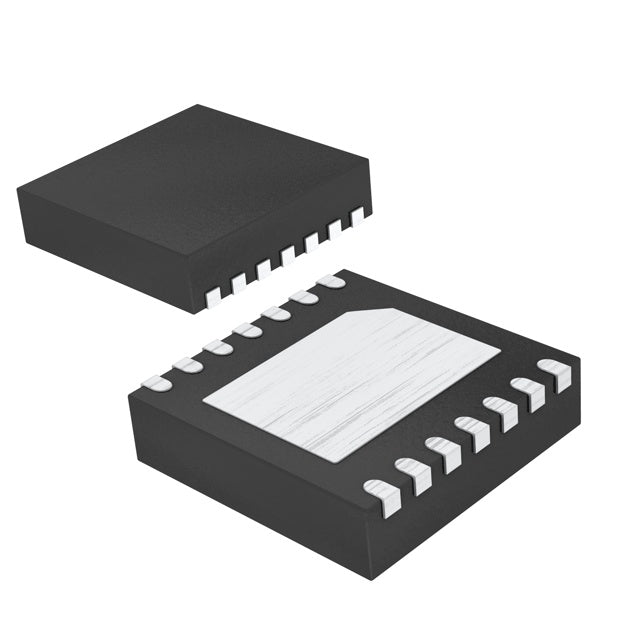

| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX8601ETD+T is a USB-compatible linear battery charger designed for single-cell Lithium Ion batteries. It provides a charge current of up to 1A and targets a 4.2V battery voltage. This charger includes essential Over Temperature and Over Voltage protection. Housed in a compact 14-WFDFN package, it operates over a wide temperature range of -40°C to 85°C, making it suitable for a variety of portable consumer and industrial devices.
- Universal USB Charging: The USB interface allows for convenient charging from any standard USB port, including adapters, computers, and power banks.
- Compact and Lightweight: The small 14-WFDFN package is perfect for space-constrained wearable and portable designs.
- Robust Protection: Integrated Over Temperature and Over Voltage protection safeguards the battery and the device from potential damage.
- Wide Operating Range: With a -40°C to 85°C rating, it is reliable for both consumer and industrial applications.
Compact Wearable Devices
For smartwatches and fitness trackers with small single-cell Li-Ion batteries, the MAX8601ETD+T's 1A charge current and tiny 14-WFDFN package provide an ideal, space-saving charging solution.
USB-Powered Consumer Gadgets
Wireless earbuds, Bluetooth speakers, and digital cameras can be conveniently charged from any USB port, simplifying the user experience and reducing the need for proprietary chargers.
Portable Medical Sensors
In wearable health monitors, the wide -40°C to 85°C temperature range ensures dependable charging in various environmental conditions, from cold outdoor use to warm indoor settings.
IoT Endpoint Devices
For wireless sensors and smart home devices powered by a single Li-Ion cell, this IC offers a straightforward and reliable USB charging path with essential safety protections.
Handheld Gaming Consoles
Portable gaming devices benefit from the USB compatibility and the 1A charge rate, providing a practical balance between charging speed and thermal management in a compact form factor.
- Q: What battery chemistry does the MAX8601ETD+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protections are available?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface.
MAX8601ETD+T.pdf
