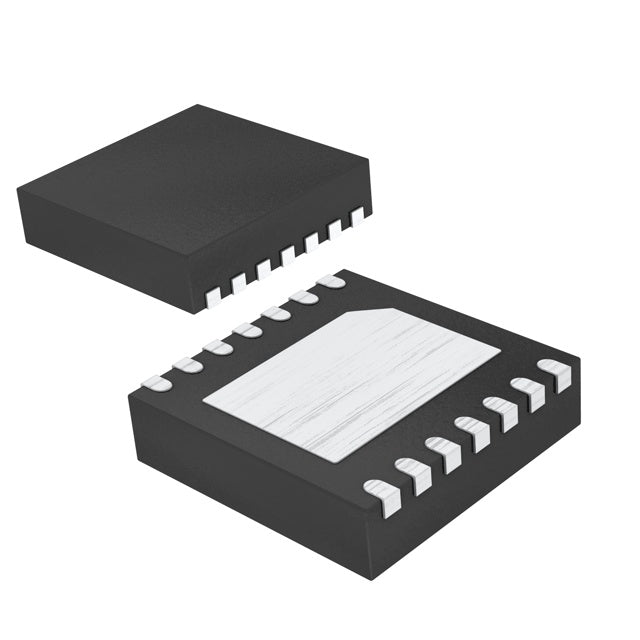

Analog Devices Inc./Maxim Integrated MAX8606ETD+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.53 | $7.53 |
| 15+ | $7.30 | $109.50 |
| 25+ | $7.14 | $178.50 |
| 50+ | $6.74 | $337.00 |
| 100+ | $5.95 | $595.00 |
| N+ | $1.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX8606ETD+T is a USB-compatible battery charger from Analog Devices, specifically designed for single-cell Lithium Ion/Polymer batteries. It delivers a charge current of up to 1A and regulates the voltage to 4.2V. With built-in over temperature and over voltage protection, it ensures safe charging. The device is available in a compact 14-WFDFN package and operates over an industrial temperature range of -40°C to 85°C.
- Native USB interface simplifies design for consumer electronics that charge from a standard USB port.
- Integrated over temperature and over voltage protection enhances system safety and battery longevity.
- 1A charge current provides a good balance between charging speed and thermal management for single-cell packs.
- Wide -40°C to 85°C operating range allows for use in portable devices exposed to various environmental conditions.
Smartphones and Tablets
The USB interface and 1A charge current make it ideal for charging single-cell Lithium Ion/Polymer batteries in mobile phones and compact tablets directly from a USB port.
Wearable Devices
Smartwatches and fitness trackers with small 4.2V batteries benefit from the MAX8606's integrated protection and small 14-WFDFN package, ensuring safe charging in a tiny footprint.
Portable Bluetooth Speakers
These devices often use single-cell Lithium Polymer batteries. The MAX8606 provides a reliable USB-powered charging solution with over-temperature protection for safe operation.
Wireless Earbuds and Charging Cases
The compact size and USB compatibility make it suitable for charging cases that manage a single-cell pack, ensuring the earbuds are always ready.
Digital Cameras and Action Cams
Portable cameras with 4.2V Lithium Ion batteries can be conveniently charged via USB using this controller, simplifying the charging process for users.
- Q: What battery chemistry does the MAX8606ETD+T support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells is it designed for?
- A: It is designed for a single cell (1).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes over temperature and over voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface for charging.
MAX8606ETD+T.pdf
