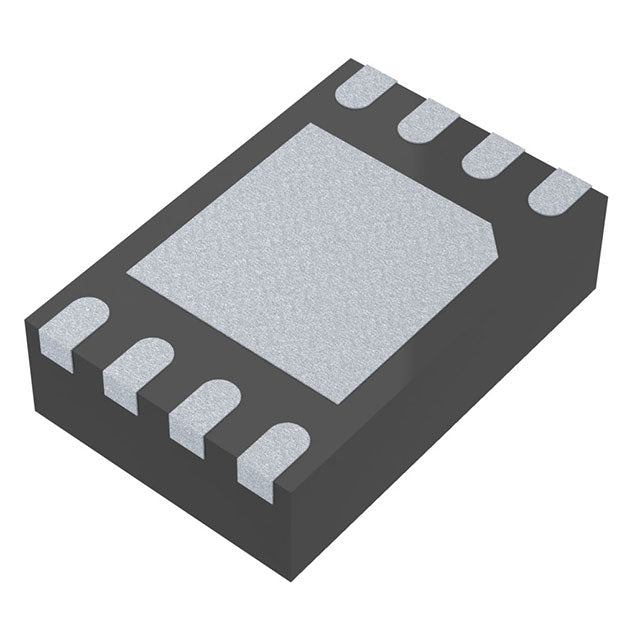

Analog Devices Inc./Maxim Integrated MAX8804ZETA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.40 | $8.40 |
| 15+ | $1.93 | $28.95 |
| 25+ | $1.89 | $47.25 |
| 50+ | $1.79 | $89.50 |
| 100+ | $1.58 | $158.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 735mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 28V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| ROHS |  |
Product Overview
The MAX8804ZETA+T is a high-performance lithium-ion battery charger IC from Analog Devices Inc./Maxim Integrated, designed for single-cell Li-Ion battery charging applications. This advanced charging solution features USB interface compatibility, programmable constant current charging up to 735mA, and comprehensive over-voltage fault protection to ensure safe and reliable battery charging operations.
Key Features & Benefits
- Single-Cell Li-Ion Charging: Optimized for 4.2V battery pack voltage with precision regulation
- USB Interface: Seamless integration with USB-powered applications and devices
- Programmable Charging Current: Constant current charging up to 735mA maximum for flexible application requirements
- Wide Input Voltage Range: Supports supply voltages up to 28V for versatile power source compatibility
- Comprehensive Protection: Built-in over-voltage fault protection safeguards battery and system integrity
- Extended Temperature Range: Operates reliably from -40°C to 85°C for industrial and automotive applications
- Compact Package: Space-saving 8-TDFN (2x3) surface mount package ideal for portable and space-constrained designs
- RoHS Compliant: Meets environmental standards for global market compliance
Applications
The MAX8804ZETA+T is ideal for a wide range of battery-powered applications including portable medical devices, industrial handheld instruments, consumer electronics, wireless sensors, IoT devices, and USB-powered charging solutions. Its robust design and wide operating temperature range make it suitable for both consumer and industrial applications requiring reliable single-cell lithium-ion battery charging.
Technical Specifications Summary
This battery charger IC features constant programmable charging current, 8-WFDFN exposed pad package configuration, and surface mount technology for easy PCB integration. The device operates across ambient temperatures from -40°C to 85°C, making it suitable for harsh environmental conditions in aerospace, automotive, and industrial applications.
