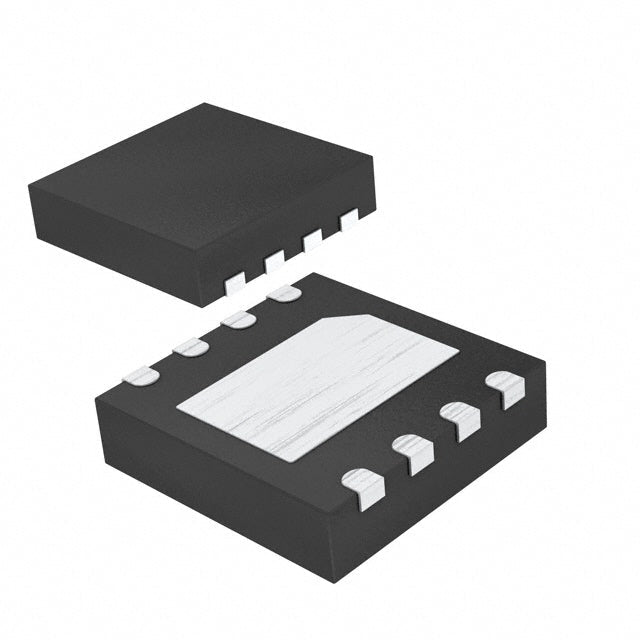

Analog Devices Inc./Maxim Integrated MAX8814ETA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.35 | $6.35 |
| 15+ | $6.15 | $92.25 |
| 25+ | $6.01 | $150.25 |
| 50+ | $5.68 | $284.00 |
| 100+ | $5.01 | $501.00 |
| N+ | $1.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 656mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.8V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (2x2) |
| ROHS |  |
The MAX8814ETA+T is a compact, single-cell Lithium Ion battery charger from Analog Devices. It provides a charge current up to 656mA and a precise 4.2V battery voltage. This charger includes over-voltage protection to ensure safe operation. Packaged in a small 8-WFDFN with an exposed pad, it is an excellent choice for space-constrained consumer and medical applications.
- Space-Saving Package: The 8-WFDFN package is ideal for miniaturized electronic designs.
- Precise Voltage Regulation: Maintains a tight 4.2V output for safe and efficient Li-Ion charging.
- Integrated Over-Voltage Protection: Prevents damage from voltage surges.
- Wide Temperature Operation: Reliable performance from -40°C to 85°C.
Compact Wearable Devices
Its small footprint and moderate charge current make it perfect for smartwatches and fitness bands that require a simple, reliable charging solution.
Wireless Earbuds and Charging Cases
Ideal for charging the small Li-Ion cells inside wireless earbuds and their portable charging cases.
Portable Medical Devices
Suitable for devices like glucose monitors and hearing aids where a safe, low-current charge is essential for battery longevity.
Remote Controls and IoT Sensors
Provides a dependable charging method for the batteries in remote controls and low-power IoT sensors.
Small Consumer Electronics
Perfect for digital cameras, MP3 players, and other small electronics that use a single 4.2V Li-Ion cell.
- Q: What battery chemistry does the MAX8814ETA+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 656mA.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What is the operating temperature range?
- A: The ambient temperature range is -40°C to 85°C.
