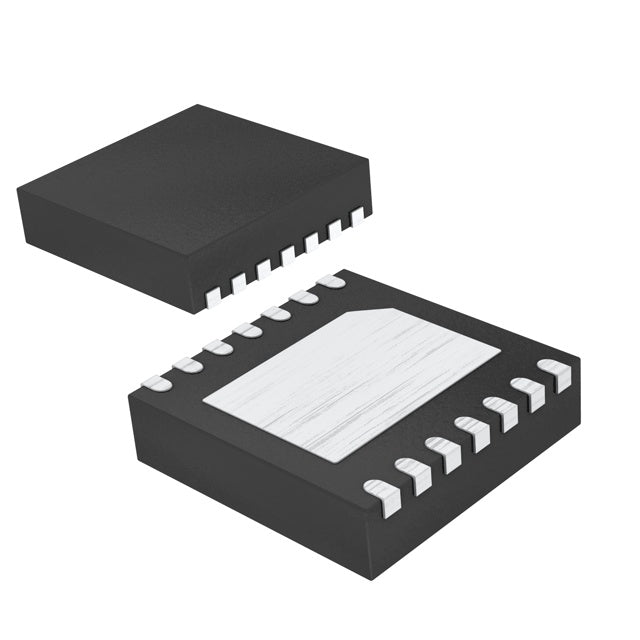

Analog Devices Inc./Maxim Integrated MAX8856ETD+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.53 | $7.53 |
| 15+ | $7.30 | $109.50 |
| 25+ | $7.14 | $178.50 |
| 50+ | $6.74 | $337.00 |
| 100+ | $5.95 | $595.00 |
| N+ | $1.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX8856ETD+T is a USB-compatible, single-cell Lithium Ion battery charger from Analog Devices. It provides a charge current of up to 1A and regulates the final battery voltage to 4.2V. The device includes over voltage protection to safeguard the battery. Packaged in a compact 14-WFDFN, it operates across an industrial temperature range of -40°C to 85°C, making it suitable for a wide array of portable electronics.
- USB interface enables universal charging from standard adapters, computers, and power banks.
- 1A charge current allows for reasonably fast charging of single-cell Lithium Ion batteries.
- Over voltage protection prevents damage from charging faults, enhancing system reliability.
- Industrial temperature range (-40°C to 85°C) supports use in outdoor and demanding applications.
USB-Powered Consumer Gadgets
Devices like portable power banks and small flashlights with single-cell Lithium Ion batteries can be charged directly from a USB port using the MAX8856's 1A capability.
Compact IoT Sensors
Wireless sensors and beacons powered by a single 4.2V cell benefit from the simple USB charging interface and the wide -40°C to 85°C temperature range for outdoor deployment.
Portable Point-of-Sale (POS) Terminals
Handheld POS devices with single-cell packs require reliable charging. The MAX8856 offers a straightforward USB solution with over voltage protection for safe daily use.
Personal Care Devices
Electric toothbrushes and shavers with Lithium Ion batteries can be conveniently recharged via USB, leveraging the MAX8856's compact WFDFN package for slim designs.
Smart Home Controllers
Battery-powered smart home hubs and sensors with a single-cell pack can use this charger for maintenance-free, USB-based recharging.
- Q: What battery chemistry does the MAX8856ETD+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it charge?
- A: It charges a single cell (1).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the target battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes over voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface.
