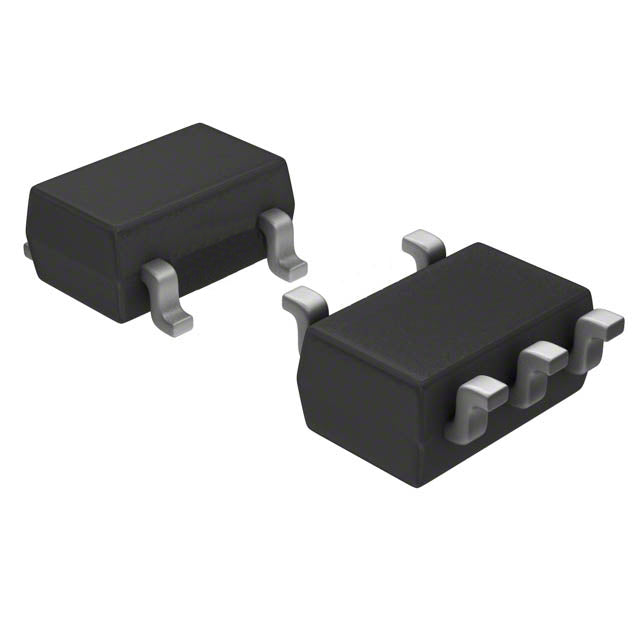

Analog Devices Inc./Maxim Integrated MAX8877EUK25+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.85 | $3.85 |
| 15+ | $3.73 | $55.95 |
| 25+ | $3.65 | $91.25 |
| 50+ | $3.44 | $172.00 |
| 100+ | $3.04 | $304.00 |
| N+ | $0.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The MAX8877EUK25+T is a low dropout linear regulator from Analog Devices/Maxim Integrated, providing a fixed 2.5V output at up to 150mA. With a typical dropout of 0.165V and 180 µA quiescent current, it is optimized for battery-powered and portable applications. The SOT-23-5 package ensures a compact footprint for space-constrained designs.
- Low Quiescent Current: 180 µA extends battery life in portable devices.
- Minimal Dropout: 0.165V typical dropout maximizes usable battery voltage.
- Small Package: SOT-23-5 saves PCB space for miniaturized designs.
- Stable 2.5V Output: Ensures reliable performance for low-voltage electronics.
Battery-Powered Wearables
The MAX8877EUK25+T delivers a stable 2.5V output with low 180 µA quiescent current, ideal for extending battery life in smartwatches and fitness trackers.
Portable GPS Devices
Provides clean 2.5V power for GPS receivers, ensuring accurate positioning with minimal noise interference.
Wireless Sensors
Low dropout and compact SOT-23-5 package make it suitable for powering 2.5V sensor nodes in IoT networks.
Handheld Gaming Consoles
Supports 2.5V logic rails in portable gaming devices, offering efficient power conversion with minimal heat.
Medical Implants
Reliable 2.5V regulation for low-power medical devices, where stability and small size are critical.
Consumer Electronics
Ideal for cameras, remote controls, and other devices requiring a regulated 2.5V supply.
- Q: What is the output voltage?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can supply up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Typical dropout voltage is 0.165V at 150mA.
- Q: What is the quiescent current?
- A: Quiescent current is 180 µA.
- Q: What is the package type?
- A: It comes in a SOT-23-5 package.
MAX8877EUK25+T.pdf
- Q: What is the output voltage?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can supply up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Typical dropout voltage is 0.165V at 150mA.
- Q: What is the quiescent current?
- A: Quiescent current is 180 µA.
- Q: What is the package type?
- A: It comes in a SOT-23-5 package.
