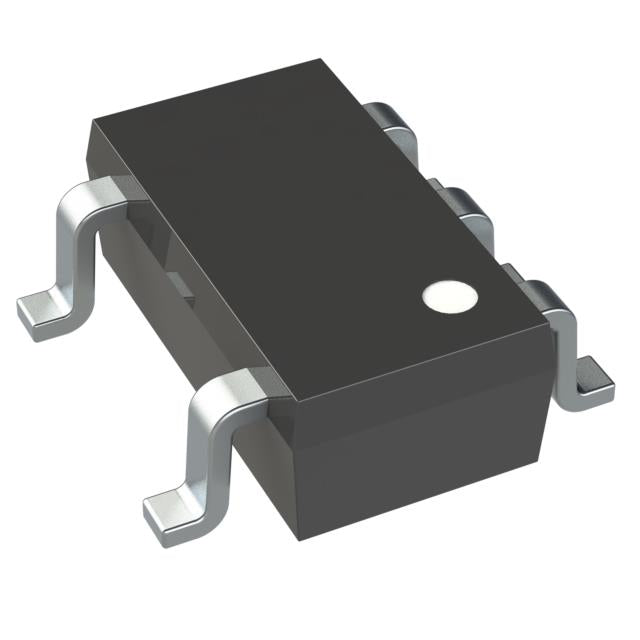

Analog Devices Inc./Maxim Integrated MAX8877EZK29+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.30 | $5.30 |
| 15+ | $1.22 | $18.30 |
| 25+ | $1.20 | $30.00 |
| 50+ | $1.13 | $56.50 |
| 100+ | $1.00 | $100.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.84V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 μA |
| Current - Supply (Max) | 100 μA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MAX8877EZK29+T is a fixed 2.9V LDO linear regulator from Analog Devices, capable of delivering 150mA. With a low 165mV dropout at full load and 180µA quiescent current, it is optimized for battery-powered applications. The TSOT-23-5 package offers a thin profile for space-constrained designs.
- Space-Saving Thin Package: TSOT-23-5 is ideal for ultra-thin electronics, enabling slimmer product designs.
- Low Power Consumption: 180µA quiescent current helps maximize battery life in standby and active modes.
- Minimal Dropout: 165mV dropout at 150mA ensures efficient operation even with low input voltages.
- Fixed Output Simplicity: No external feedback resistors needed, reducing component count and design complexity.
Thin Profile Portable Devices
The TSOT-23-5 package is thinner than standard SOT-23, making it perfect for slim wearables and smart cards where height is limited.
Low-Power Microcontrollers
Provides a stable 2.9V rail for MCUs in battery-operated remote controls, reducing power consumption with its 180µA quiescent current.
Wireless Sensor Networks
Low dropout and low quiescent current extend the life of coin-cell powered sensors transmitting data periodically.
Handheld Test Equipment
Ensures accurate voltage reference for portable multimeters and calibrators, maintaining precision over temperature.
GPS Receivers
Delivers clean 2.9V power to GPS modules, improving signal acquisition and reducing noise interference.
LED Driver Bias Supply
Can be used to bias LED driver ICs in portable displays, providing a stable voltage for consistent brightness.
- Q: What is the output voltage of the MAX8877EZK29+T?
- A: It provides a fixed 2.9V output, suitable for powering 2.9V digital and analog circuits.
- Q: How much current can it supply?
- A: The maximum output current is 150mA.
- Q: What is the input voltage requirement?
- A: The minimum input voltage is 2.84V; the maximum is not specified in the provided data.
- Q: What is the dropout voltage?
- A: Typical dropout is 165mV at 150mA, allowing efficient regulation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is 180µA, making it suitable for low-power applications.
- Q: What package does this come in?
- A: It is available in a TSOT-23-5 package, a thin variant ideal for height-constrained designs.
