Analog Devices Inc./Maxim Integrated MAX8877EZK32+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.32 | $4.32 |
| 15+ | $0.99 | $14.85 |
| 25+ | $0.97 | $24.25 |
| 50+ | $0.92 | $46.00 |
| 100+ | $0.81 | $81.00 |
| N+ | $0.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

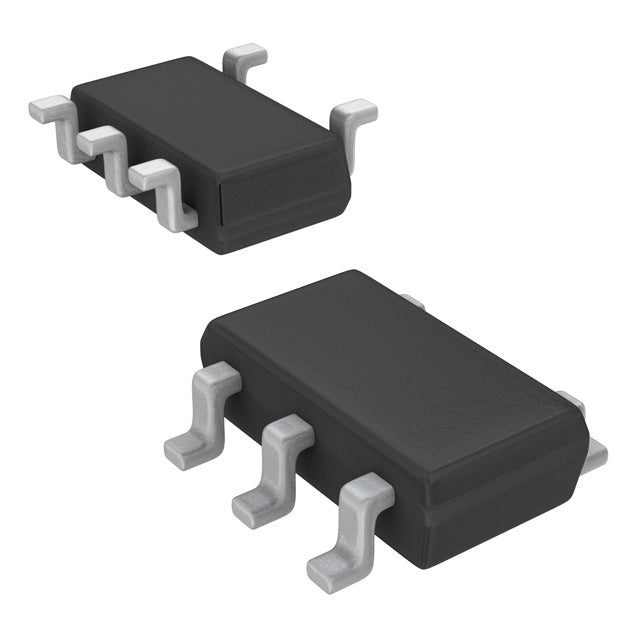

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MAX8877EZK32+T is a high-performance low-dropout linear regulator from Analog Devices, offering a fixed 3.2V output and 150mA current capability. With a typical dropout of just 165mV and a quiescent current of 180µA, it delivers efficient, clean power for battery-operated and noise-sensitive applications. The TSOT-23-5 package ensures a minimal footprint, making it suitable for compact electronic designs.
- Precise 3.2V Output: Fixed voltage eliminates external resistor dividers, simplifying design and improving accuracy.
- Low Power Consumption: 180µA quiescent current extends battery life in portable applications.
- Minimal Dropout: 165mV dropout at 150mA enables operation from low input voltages.
- Space-Saving Package: TSOT-23-5 is ideal for high-density PCB designs.
3.3V to 3.2V Conversion
This LDO provides a precise 3.2V rail from a 3.3V supply with only 165mV dropout, ideal for powering components that require a slightly lower voltage than standard logic levels.
Battery-Powered Medical Devices
The low 180µA quiescent current and stable 3.2V output support portable glucose monitors, pulse oximeters, and other medical instruments where power efficiency is critical.
Audio and Multimedia Equipment
Deliver clean 3.2V power to audio codecs, DACs, and amplifiers, reducing noise and improving signal fidelity in portable media players.
Automotive Interior Electronics
With a wide input range and robust design, it can regulate power for infotainment systems, dashboard sensors, and interior lighting controllers.
FPGA and CPLD Core Supplies
Provide a stable 3.2V core voltage for low-power FPGAs and CPLDs, ensuring reliable logic operation in embedded systems.
Portable Test and Measurement
Use in handheld multimeters, thermometers, and calibration tools where a stable, low-noise 3.2V rail is required for accurate readings.
- Q: What is the output voltage of the MAX8877EZK32+T?
- A: The fixed output voltage is 3.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 3.2V up to 6.5V (typical LDO operation).
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 165mV at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 180µA.
- Q: What package is available?
- A: It comes in a compact TSOT-23-5 package.
