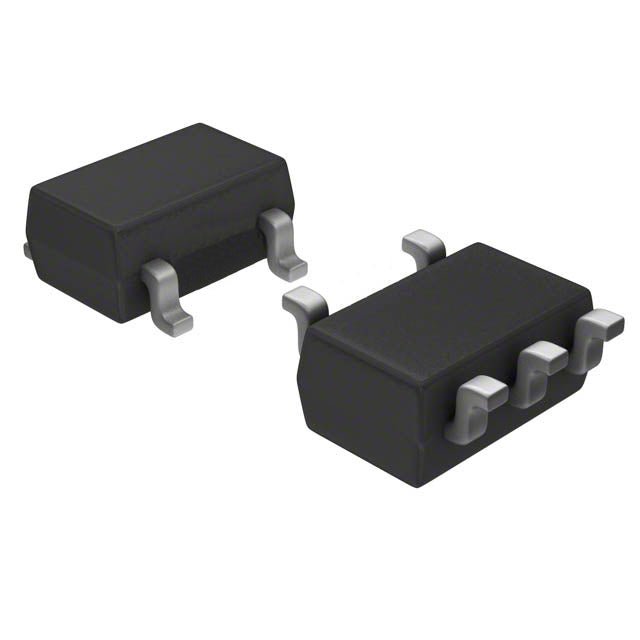

Analog Devices Inc./Maxim Integrated MAX8878EUK25+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.85 | $3.85 |
| 15+ | $3.73 | $55.95 |
| 25+ | $3.65 | $91.25 |
| 50+ | $3.44 | $172.00 |
| 100+ | $3.04 | $304.00 |
| N+ | $0.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The MAX8878EUK25+T is a fixed 2.5V low dropout linear regulator from Analog Devices, delivering up to 150mA. With a typical dropout of 0.165V and a quiescent current of 180 µA, it is optimized for battery-powered and low-power applications. The SOT-23-5 package enables compact designs.
- Efficient Power Delivery: Low dropout voltage reduces power dissipation and improves efficiency.
- Battery-Friendly: 180 µA quiescent current minimizes drain in idle mode.
- Stable Output: Provides a reliable 2.5V rail for sensitive digital and analog circuits.
- Space-Saving: SOT-23-5 package is ideal for miniaturized electronics.
DSP and FPGA Core Supplies
Provides a stable 2.5V rail for DSPs and FPGA cores, with low dropout ensuring regulation from a 2.8V or 3.3V input.
Battery-Powered Instrumentation
The low 180 µA quiescent current is ideal for portable multimeters and field instruments that require long battery life.
Memory Power (DDR)
Can be used to power DDR memory termination or VTT rails, offering clean and stable 2.5V output.
RF Transceivers
Provides low-noise 2.5V supply for RF transceivers, reducing interference and improving signal integrity.
Wearable Health Monitors
Compact SOT-23-5 package and low power consumption make it suitable for fitness trackers and medical patches.
- Q: What is the output voltage of the MAX8878EUK25+T?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 0.165V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 180 µA.
- Q: What package is available?
- A: It comes in a SOT-23-5 package.
